SAGMOTO E1st

E1ST China Heavy Duty Truck

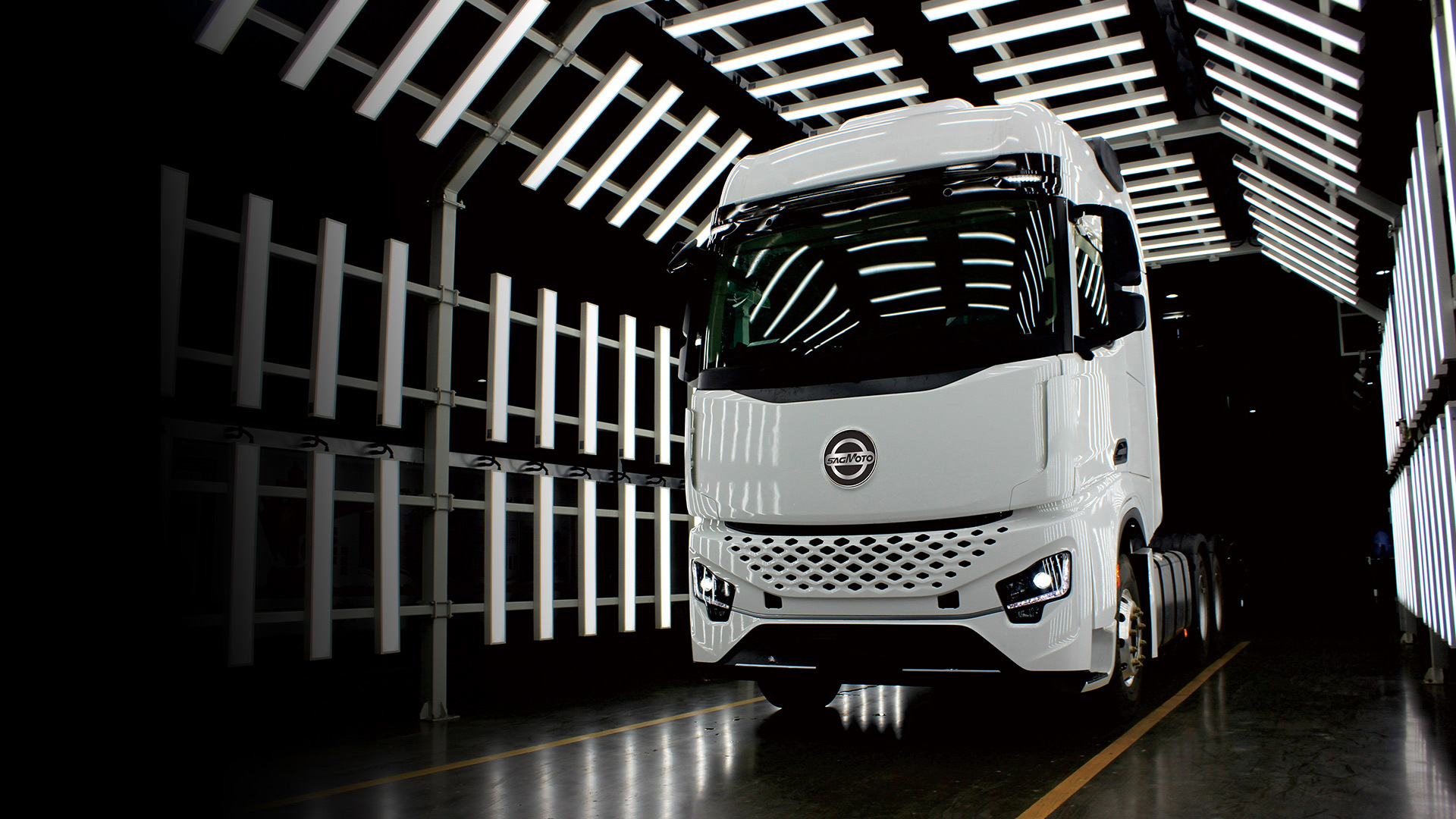

E1st is a brand-new super heavy truck launched by SAGMOTO after the insight and research on the future development direction of logistics and transportation industry and customer needs. With excellent performance, comfort and all-round safety guarantee, it brings new transportation experience and more values to users.

scroll down

Exterior

• The whole vehicle adopts a star-shaped air intake grille with penetrating chrome-plated decoration. The whole front face is scientific and fashionable, with strong visual impact, and smooth adjustment of top air deflector.

• Irregular black headlights on both sides are unique in shape, integrating high and low beam lights, fog lights, turn signals and driving assistance lights. At the same time, it is equipped with the automatic switching function of high and low beam light, which improves the safety of driving at night.

• Electric heating rearview mirror, the upper and lower lenses support independent adjustment.

• Multi-sound insulation and noise reduction technologies, such as double-channel door seal, multi-layer glue seal, seal strengthening and engine noise reduction, have achieved NVH of 50.6dB, and the noise of vehicles is better than that of the same level in the industry whether idling or driving.

Interior Decoration

The interior adopts the design concept of car-class intelligent seat, and the design of flat floor is 2.13 meters high, which provides ample space for drivers and passengers.

12.3-inch full LCD instrument, suspended central control large screen, full of sense of science and technology, display information is very rich. The large-size touch screen integrates audio-visual entertainment and 360 images.

Multifunctional steering wheel with ACC adaptive cruise button

Grammer luxury airbag cushioned seats, with one-button inflation and deflation, heating and ventilation functions, can be adjusted from multiple angles, effectively reducing the fatigue of long-distance driving.

Frequency conversion air conditioner+low temperature lithium battery, 6 hours continuous operation.

Equipped with a water dispenser and refrigerators

Chassis

Parts suppliers are from imported manufacturers like Knohl and Bosch, which ensures the excellent performance of the whole vehicle in details, thus improving the quality of the whole vehicle.

Cummins 13-liter engine has superior power performance by applying technologies such as high detonation pressure, predictive cruise and thermal management.

Eaton's latest generation of integrated AMT gearbox has a transmission efficiency of 99.8%, and has twelve functions such as starting on a ramp and taxiing in neutral.

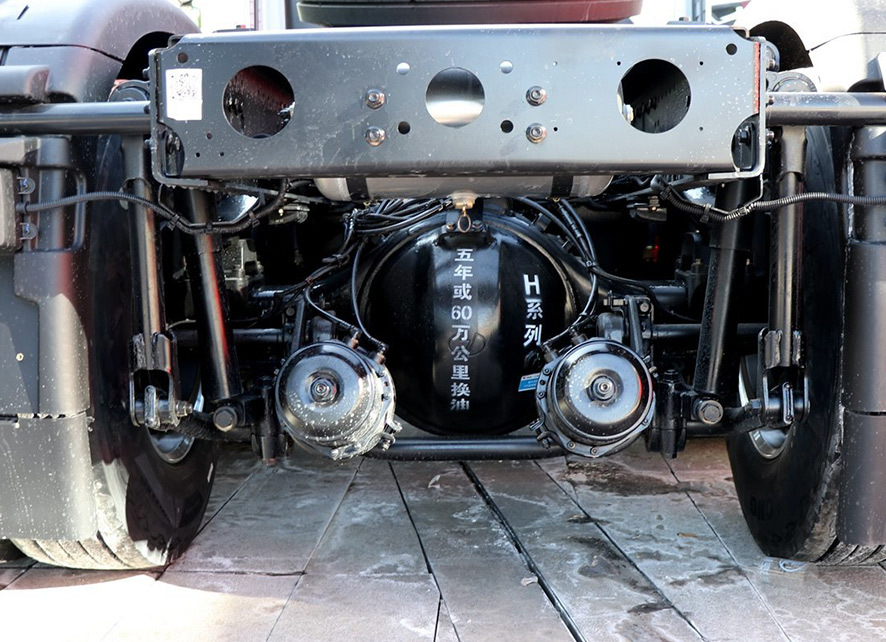

The front and rear axles are all made of Hande maintenance-free series products which have an oil change cycle of 5 years or 600 thousand kilometers, therefore reduces the cost of car maintenance for users.

The vehicle model can be equipped with 850L+380L double fuel tank, and the cruising range can reach more than 3000km, which provides a reliable guarantee for long-distance transportation.

The braking system with the highest system pressure in the industry is safer to drive with a braking distance of 25 meters.

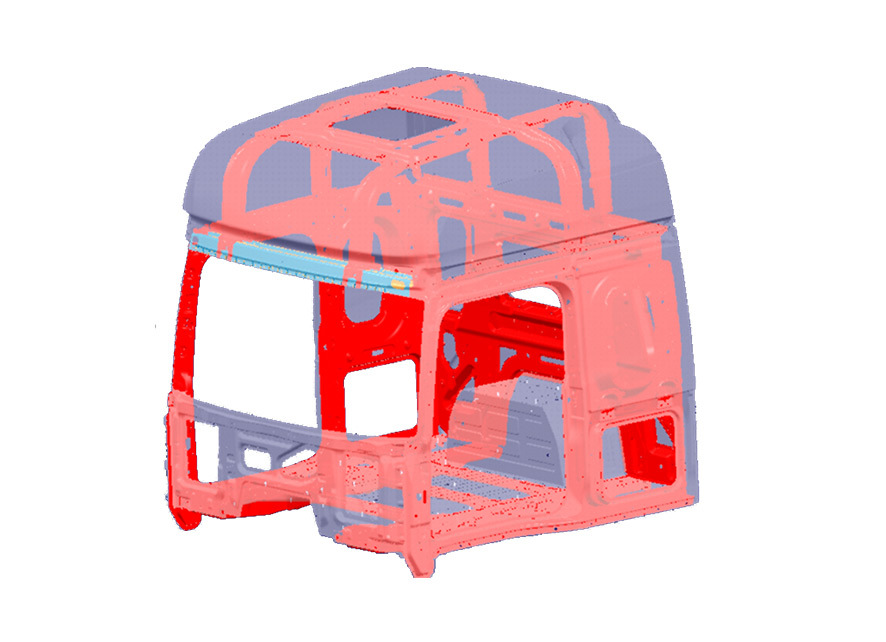

Intelligent active safety technologies: LDWS (lane departure warning) +AEBS (anti-collision warning) +TPMSR (tire pressure monitoring system), ASR (driving acceleration slip regulation), ESC (electronic stability control system)… +cab conforming to the ECE certification of the European Union, which fully guarantees the safety of vehicles, drivers and passengers.

E1st

Basic Configuration

Driving Type

4×2

GCW

44T

Cab（mm）

E1st Extended high roof with overhead and side deflectors

Engine

Model

Displacement

Torque（N.m）

Horsepower

Emission

M13E5 560

12.5L

2600N.m

560

Euro V

Wheelbase（mm）

3800mm

Frame（mm）

（970-850）×270/8 single

Transmission

Model

Gearbox

EHDM-26N112C-R+VR115CT+Power-take-off

12Forward+2Reverse

Front Axle

7.3t

Rear Axle

13t（3.545）

Leaf Spring

Airbag suspension

Tyre

315/80R22.5

Fuel Tank

980L+400L Aluminium

Functional Configuration

Cab: E1st logo, extended high roof with overhead and side deflectors, cab airbag suspension, integrated automatic air-conditioner, multifunctional leather steering wheel, electric flipping, fiberglass reinforced plastic bumper, electric window, central locking (with remote control), 360-view camera(with camera from seven sides) +12.3-inch suspension screen, ventilated and heated main seat, ventilated and heated air auxiliary seat, electric and heated rearview mirror, full LCD instrument and tire pressure monitoring. 4kw independent heating, one-button start+keyless entry (without electronic steering column lock), small table board, large-capacity car refrigerator (42L) under the bed, driver and passenger seat belts reminder, door sunshade curtain, 2kw inverter power supply, parking air conditioner, cab curtain, electromagnetic power master switch, bilateral tool box, fender tool box, sun visor with decorative lights, reserved blowing gun and interface, overhead box and bed with lighting. LED, daytime running light, headlights automatically turn on, front collision warning+lane departure warning system, reserved MTCO3.0 driving recorder wiring harness and interface, 15-core trailer socket +EBS trailer socket, without rear window, fender with splash prevention, door armrest optimization, and plastic wrap for the cab armrest.

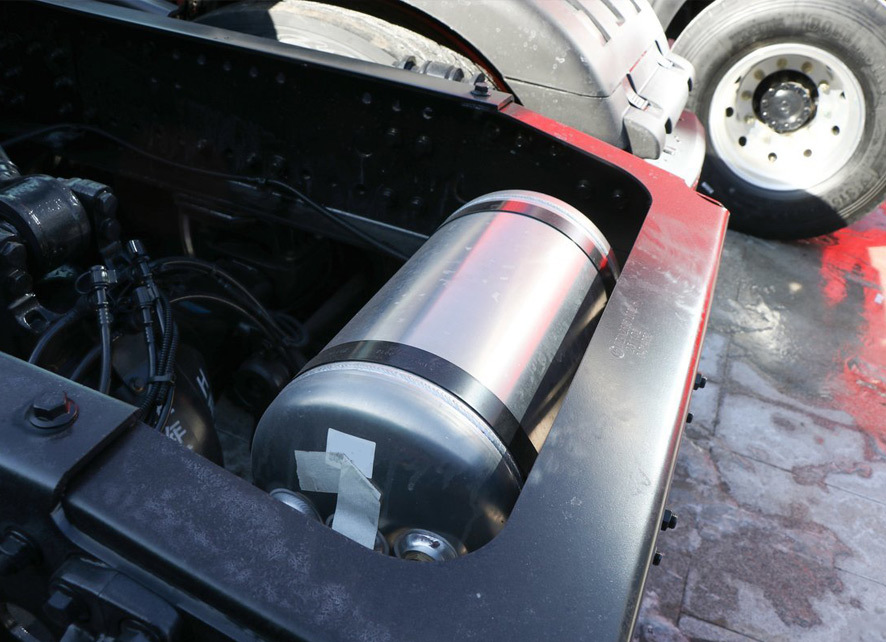

Chassis: common mid-air filter, AEBS (with ACC adaptive cruise), EBS+ESC (Knohl), JACOB, 200Ah stacked lithium battery, lightweight three-section integral fender (splash protection device with E label), aluminum alloy air storage tank, electric heating oil sensor, front and rear axle disc brake (maintenance-free), front and lower bumper, rear working light of trailer, ECU speed limit of 90km/. Knohl ECSA, ContiTech airbag. Backward movement of ECAS operating handle, aluminum alloy rim of the whole vehicle, optimization of operating platform, addition of protective cap for rear wheel nut, aluminum alloy flat operating platform, adjustable fifth-wheel back and forth, axle load self-weighing system, storage platform, reserved 1Mpa tire inflation interface, brake system is equipped with centralized detection connector, widen the rest platform, wear alarm, starting and stopping off the vehicle, emergency power supply, front stabilizer bar, reinforced tail beam, hoisting jack and fire extinguisher, fire extinguisher bracket is cancelled, parking wedge meets ECE R105 regulations and ADR certification, cast 50 fifth-wheel (L50), fifth-wheel with lubricant (with E mark on the sample vehicle), and on-board tools.

Customized services

To thank your support for SAG Commercial Vehicle Company, we provide you with an overseas comprehensive warranty policy. Extra long warranty period with unlimited mileage: 24 months for tractor, 18 months for cargo truck, 12 months for dump truck, 18 months for special vehicles. Fast and flexible after-sales appointments, 24-hour standby. If your vehicle experiences an irreparable breakdown during operation, do not hesitate, dial our local service hotline immediately, and we will promptly arrive on-site to assist you with the repairs.

We engage in close collaboration with overseas partners, utilizing a unique support model that combines overseas channel reserves with precision components pre-preparing. This effectively enhances the availability of after-services. Furthermore, based on your vehicle holdings, we can formulate personalized components assurance plans, ensuring you can get maintenance resources more quickly and conveniently.

24 Months

24 months Tractor

18 Months

18 months Cargo Truck

12 Months

12 months Dump Truck

18 Months

18 months Special Vehicles
