SAGMOTO X6 Series

Agile and Lightweight, Yet Powerful.

X6 series of products have a wide range of total weights design and are suitable for various applications. With features of lightweight, low fuel consumption, and high cost-effectiveness, they are widely used in medium and long-distance logistics and urban special vehicles.

scroll down

Streamlined exterior design

• The combined headlamps are styled in keeping with the rigid body style, with turn signals, low beams, high beams and daytime running lights arranged in a neat and orderly sequence.

• The rear-view mirror applys a one-piece design, which is aesthetically pleasing and at the same time reduces wind resistance. Functionally integrated with electric heating and electric adjustment, there is also a close-proximity mirror + lower mirror, which provides a view of the lower right side of the vehicle, the lower front, to ensure the safety.

Interior design display

Full consideration of ergonomics for the layout of the cab. The instrument panel adopts the semi-enclosed structure design of the car, and all the buttons are within reach to ensure driving safety.

Human-machine interface interior design of the cab includes a multifunctional steering wheel, ensuring that all buttons are within easy reach.

The combination LCD instrument electronic screen covers a wide range of driving information, providing clear and intuitive display for easy reading.

The interior colour scheme is based on brown, black and grey. The centre console has an optional 10-inch multimedia screen with a piano lacquer panel and LCD display of multimedia, Bluetooth, AC and other control switches.

Automatic temperature control air conditioning system adjusts the airflow based on the temperature automatically, allowing the driver to drive with more concentration.

Large curved panoramic windshield provides a wide and unobstructed view, cooperating with the large curved rearview mirrors and compensating mirror to eliminate blind spots to the maximum extent.

Main airbag shock-absorbing seat guarantees the comfort of daily driving, and the multi-directional adjustment function of seat helps reduce driver fatigue.

The 800mm widened lower berth makes your driving more comfortable.

100L large storage space in the top cabinet and the 1200W high-power inverter power supply make your journey more convenient.

High load capacity; wide range of speed ratios

With light weight, low fuel consumption, driving comfort and high cost performance, it can easily cope with poor working conditions.

Modular lightweight design, using aluminum alloy and high-strength material to enhance the vehicle's effective load-bearing capacity.

The vehicle is equipped with a 400L large-capacity fuel tank, and an optional 600L fuel tank is available. With a full tank, it can travel over 2000km, meeting the requirements for long-distance transportation.

The short wheelbase design allows for a small turning radius of the vehicle. The STR wheel-side reduction axle can be selected, which can be equipped with a shortened axle to meet the regulations of narrow roads and provide stronger adaptability to various working conditions.

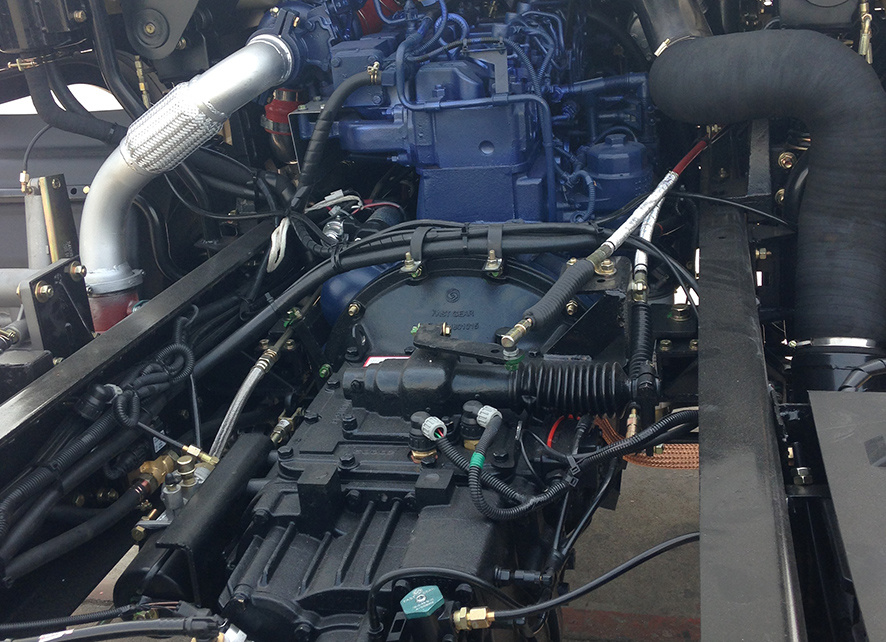

The power match is precise, with good adaptability to various working conditions and high reliability. The engine oil, oil filter, and diesel filter are designed for long maintenance intervals. The components of valves are reduced, resulting in low failure rate and high reliability.

X6 Series Products

Dump Truck Cargo truck Special Vehicle

4×4 All wheel drive

Adopting the frame with a height of 250mm and less leaf springs suspension design, the cargo box capacity is over 70 square metres.

Ventilated airbag main seats and a 680mm wider lower berth make for more comfortable.

Overall weight reduction design, the choice of aluminum alloy, high-strength profiles, lighter weight.

X6 Dropside Truck

Minimum ground clearance 314mm, approach angle greater than 25°.

Configured with airbag shock-absorbing main seat, the widest part of the lower sleeper reaches 85 cm.

Highly efficient optimization of the new transmission system + maintenance-free high-efficiency drive axles + special low-rolling resistance tires, result in lower fuel consumption for the whole vehicle

X6 Truck -mounted Crane

Flexible, Lightweight and Powerful

Short wheelbase design chassis, can be equipped with shortened axle, with smaller turning radius

Modular weight reduction design, aluminum alloy, high-strength profiles

X6 Cement Mixers Truck

Flexible, Lightweight and Powerful

Short wheelbase design chassis, can be equipped with shortened axle, with smaller turning radius

Modular weight reduction design, aluminum alloy, high-strength profiles

X6 Concrete Mixer Truck

Short wheelbase design can be assembled to shorten the axle, smaller turning radius, flexible to deal with different complex road conditions.

Triple-layer beams; four-bolt steel plate springs; overall vehicle driving stability.

Handlebar remote throttle controller (triple-proof); full engine power take-off.

X6 Loading Crane Recovery Truck

Short wheelbase design chassis, can be equipped with shortened axle, with smaller turning radius

Modular weight reduction design, aluminum alloy, high-strength profiles

The largest torque compared with the same displacement engine. Starting, overtaking, climbing more vigorously

X6 Series Configuration

Categories

Cargo Truck

Garbage Truck

Sprinkler Truck

GVW

18T/25T/35T

25T/30T

20T

Configuration

Wheelbases（mm）

5000,5600+4300,5000,5500

4600，4500，500，4375+1300

4600/5000

Cab

X6 semi-high roof/2220

Engine Power

210-270

160-270

180-240

Emissions

EuroⅢ-EuroⅥ

Gearbox

8 MT/9 MT/10 MT

Front Axle

5 T/5.5 T

5 T/ 5.5T

5T/5.5 T

Drive Axle

10 T/13 T

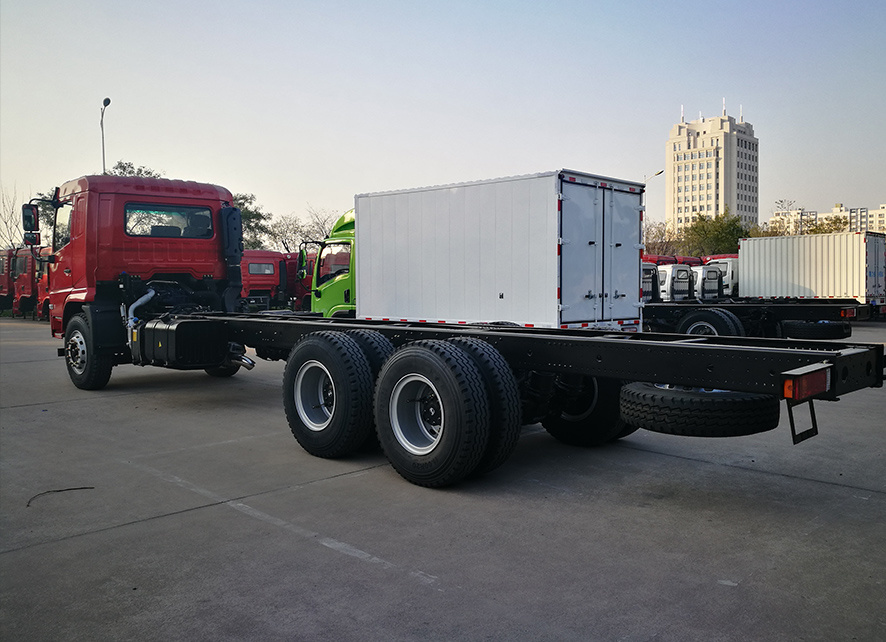

Chassis（mm）

280/8+4 double

280/8+6 double

Leaf Spring

9/10+8 3/3+2 3/4+3

9/9/10+6,8,9/10

9/10 9/10+8

Tyres

11R22.5 12R22.5

10.00R20，11.00R20

Braking

AEB/ESC/ABS/Exhaust Brakes

Oil Tank

400L/iron600L/aluminium

200L/300L/iron

200L/iron

Top

Dimensions

6750，7800,8600,9600×2450×600 with fence (guardrail)

6750，7800,8600,9600×2450×600 skate

6750，7800,8600,9600×2450×2585，2650，2750，2800 Box

Tank volume：10m³ ,14m³

Others

Main

Cab: main driver's airbag shock-absorbing seat, electric windows, automatic temperature-controlled AC, 7-inch colour LCD screen combination instrument, multi-function steering wheel, Bluetooth radio (with 5-inch screen), central locking , integral rear-view mirror, halogen headlamps, sunshade, front mechanical and rear mechanical overhangs, manual rollover.

Cab: main driver's airbag shock-absorbing seat, electric windows, automatic temperature-controlled AC, 5-inch colour LCD screen combination instrument, multi-function steering wheel, Bluetooth radio (with 5-inch screen), central locking, lever-type mirrors, halogen headlamps, manual flip.

Chassis: single-row-stage air filter; flexible shaft gearshift; 135Ah maintenance-free battery; iron air tank; water tank insect net; with front protection

Cab: main driver's airbag shock-absorbing seat, electric windows, automatic temperature-controlled AC, 5-inch colour LCD combined instrumentation, multi-function steering wheel, Bluetooth radio (with 5-inch screen), central locking, integral rear-view mirror, halogen headlamps, sunshade, manual flip ;

Chassis: single-stage air filter; with remote throttle control system/wire harness connector; 135Ah maintenance-free storage battery; iron air storage tank; with PTO;

Optional

Cab: 10.1-inch multimedia screen + reversing camera, integral electrically adjustable and electrically heated mirrors, LED headlamps, illuminated emblems, central locking (2 central keys + 2 mechanical keys), ring curtains + sleeper curtains, ventilated/heated main seats, 360 surround view (with reversing camera, 10.1"" multimedia screen), e-tilting cab system, inverter power supply 1200W, top deflector.

Chassis: low rolling resistance tyres, 5T maintenance free front axle

Cab: 10.1-inch multimedia screen + reversing camera, integral rearview mirror, integral ESC electric heated rearview mirror, LED headlights, illuminated emblem, ventilated/heated main seat, electric flip, inverter power supply.

Chassis: with under-tank protection; aluminium air storage tank.

Cab: illuminated emblem ; LED headlamps ; central locking ; lever mirrors ; integral electrically adjustable and electrically heated mirrors ; 10.1-inch multimedia display ; reversing camera ; ventilated/heated main seats

Customized services

To thank your support for SAG Commercial Vehicle Company, we provide you with an overseas comprehensive warranty policy. Extra long warranty period with unlimited mileage: 24 months for tractor, 18 months for cargo truck, 12 months for dump truck, 18 months for special vehicles. Fast and flexible after-sales appointments, 24-hour standby. If your vehicle experiences an irreparable breakdown during operation, do not hesitate, dial our local service hotline immediately, and we will promptly arrive on-site to assist you with the repairs.

We engage in close collaboration with overseas partners, utilizing a unique support model that combines overseas channel reserves with precision components pre-preparing. This effectively enhances the availability of after-services. Furthermore, based on your vehicle holdings, we can formulate personalized components assurance plans, ensuring you can get maintenance resources more quickly and conveniently.

24 Months

24 months Tractor

18 Months

18 months Cargo Truck

12 Months

12 months Dump Truck

18 Months

18 months Special Vehicles
