ZENITH Tractor

6 x 4

4 x 2

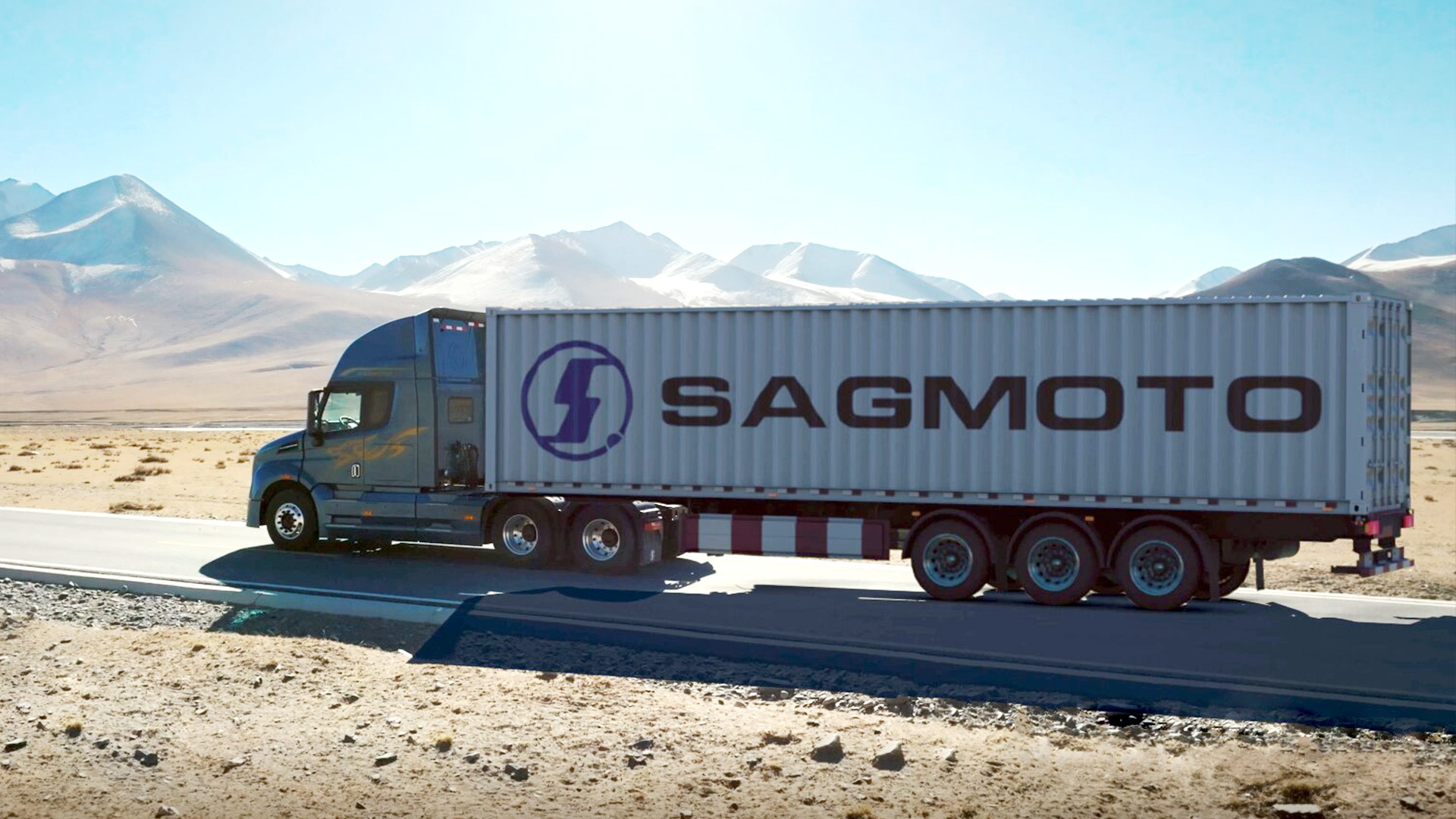

The Z3 Tractor is a newly developed product targeted at premium intelligent transportation.

It follows a forward development process and embodies a fresh approach to meet the demands of modern transportation.

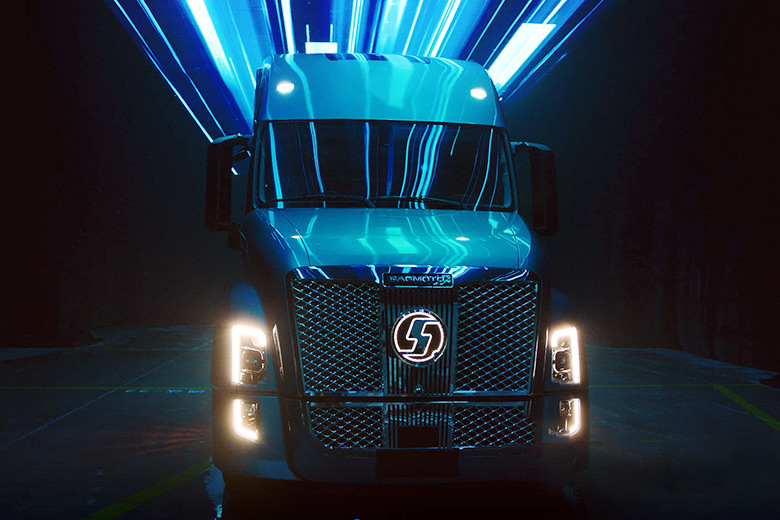

American-Inspired Exterior Design

• The Z3 heavy-duty truck boasts distinct visual characteristics and exceptional recognizability. Its imposing and robust exterior exudes a commanding presence, while its streamlined design also shows elegant and gentle.

• Our designers closely follow the popular trends of industrial design, and infusing forward-thinking design concepts into the entire vehicle's appearance.

Better-present interior design

• Full floating air suspension cab. Effective reduce vibration and stable the body.

• With its large interior space and flat floor, adults can stand and walk in the cab without any obstacle.

• Low-transmittance windscreen and side window glass provide high privacy.

• Ergonomic cab layout. Semi-enclosed car-style instrument panel, multi-function steering wheel, buttons within reach, vehicle status is in control.

• The adjustable zones of seat backrest, steering wheel shaft and pedal travel are reasonably designed. Suitable for different heights and weights of the driving crowd.
• The airbag dampened main seat and are ventilated and heated. Individual warm air and parking AC to keep the cab at a pleasant temperature.
• Adaptive Cruise Control （ACC) supports low-speed driving, following the car in front intelligently without having to step on the accelerator frequently. Fuel-saving and comfortable.

Only Gets Better！

Customer-Centered, Continuous Innovation, Creating a World-Class Intelligent Heavy-Duty Trucks.

Z3 tractor adopts high-strength steel to build "closed round frame", with low centre of gravity, which is not easy to roll over in emergencies. Matching with Voith hydraulic retarder, it can avoid brake failure caused by long time braking. At the same time, it integrates EBS, AEBS, ESC and LDWS of Knorr-Bremse and WABCO, adopting advanced technology to protect drivers.

Z3 tractor adopts streamline shape, and through aerodynamic optimisation design, the wind resistance coefficient is effectively reduced. The total power chain matching simulation and calculation is carried out through the auxiliary tool - AVL Cruise. The lightweight design of the whole vehicle, using aluminium alloy, glass fibre and composite materials in many places, results in a lower GVW. Fuel economy is ensured through a series of strategies.

With a total fuel tank capacity of 800L, it effectively ensures cold start-up in winter for cold regions.

The minimum ground clearance is 314mm, with an approach angle greater than 25°. The climbing ability reaches 30%, allowing for climbing with higher gears and faster speeds.

Zenith Tractor, the Truck of Dreams.

Zenith Tractor

The minimum ground clearance is 314mm, with an approach angle greater than 25°. The climbing ability reaches 30%, allowing for climbing with higher gears and faster speeds.

Model

SX4185C1M56B5210

SX4255C1M56B4540

Basic Configuration

Driving Type

4×2

6×4

GVW

≤ 44T

≤ 49T

Cabin（mm）

traditional cab

Engine

Model

Displacement（L）

Engine Power（HP）

Torque（N·m）

Emissions

M13E5 560

12.5

2600

560

Euro Ⅴ

Wheelb（mm）

5150

4450+1350

frame（mm）

（970-850）×270/8

Gearbox

EHDM-26N112C-R+VR115CT

Front Axle

HDZ 7.3t

Rear Axle

HDZ 13t/double reduction/ 3.7

HDZ 13t/single reduction/ 3.7

Leaf Spring

airbag suspension

Tyres

315/80R22.5

315/60R22.5

Oil Tank

700L+300L aluminum

Functional Configuration

electrically heated and ventilated airbag main seats、Multifunctional steering wheel、heated and ventilated airbag front seats、Full LCD instrument panel、Automatic air conditioning、heated and ventilated airbag front seats、LED daytime running lights、 automatic headlights、10-inch intelligent central control system、automatic rain-sensing wipers、cornering assist lighting、automatic air conditioning、180Ah maintenance-free battery、AIRTRONIC、Car fridges、24V power socket、intelligent car terminal、TPMS、blind spot monitoring,、one-key start,、 Water dispenser、AEBS、EBS+ESC

Only Gets Better！

The Z3 Tractor is a newly developed product targeted at premium intelligent transportation. It follows a forward development process and embodies a fresh approach to meet the demands of modern transportation.
