Founded in 1968, Shaanxi Automobile Holding Group Company currently employs 32,000 staff with total assets of 34.8 billion CNY. It ranks 281st in the 2022 Fortune China 500 list and 129th in the Top 500 Chinese Manufacturers

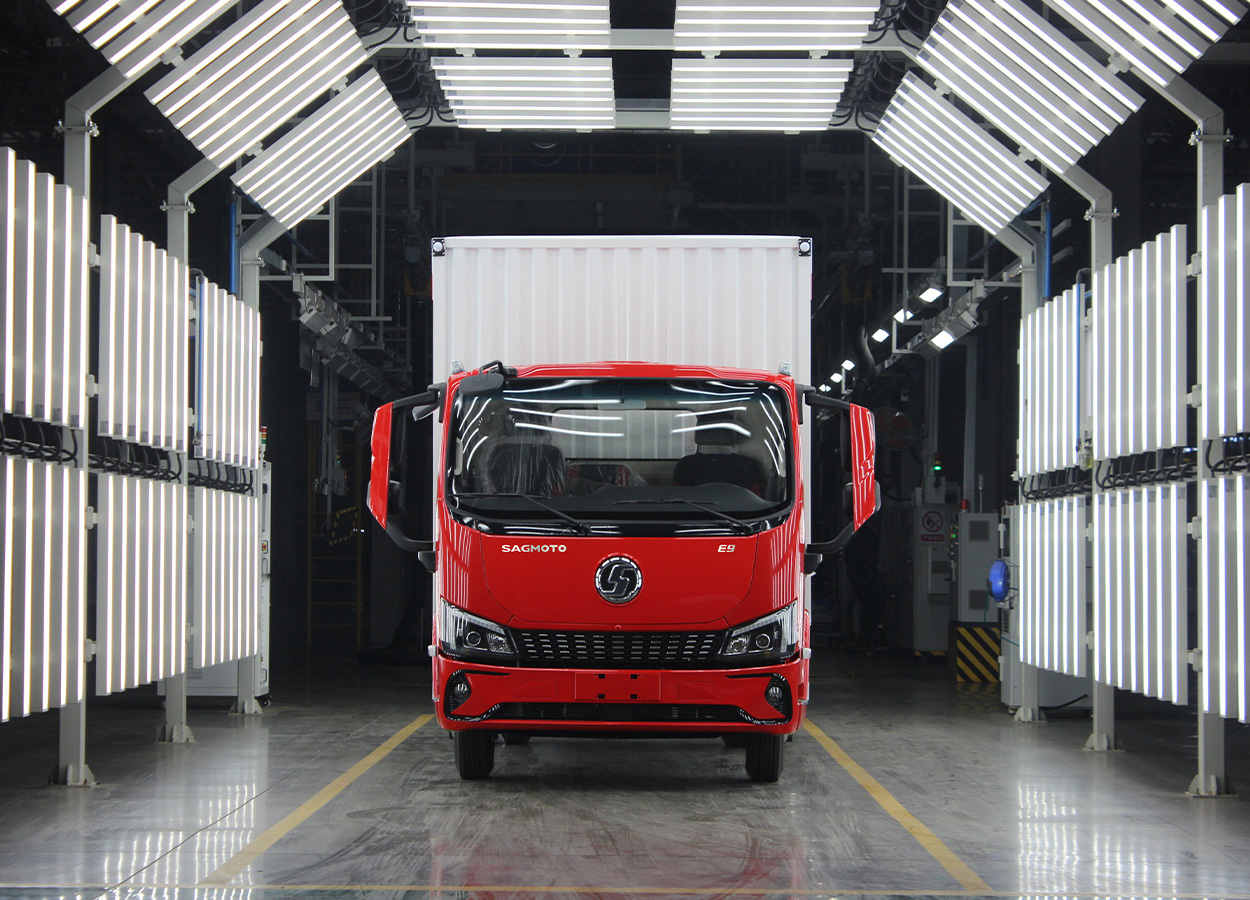

SAGMOTO E9 Series
More dynamic, more loading, more efficient, high passability, fully meet each urban transport need
E9 series light commercial vehicle products are positioned as short-distance transportation in cities, focusing on comfort and intelligence. The products cover cargo trucks, dump trucks and special vehicles, and meet the transportation needs of daily necessities, agricultural, sideline and industrial products, building and municipal sanitation materials.The appearance of the new E9 series light-duty truck adopts integral front cover, parametric grille, bionic bumper and other applications, which makes the whole vehicle a stronger sense of technology.
Streamlined exterior design
• The cab crash performance can meet the crash requirements of ECE_R29. External flow field optimization technology, low wind resistance body, wind resistance coefficient as low as 0.53. The noise inside the vehicle at idle speed is as low as 50.1dB.
• Integral electric heating rearview mirror with ultra-narrow frame and larger mirror. Fog lamps are equipped with auxiliary lighting in curved corners to reduce blind spots in night vision. Integrated design of the starry parameterized grille and bumper.
Interior
The dashboard is decorated with chrome decorative strips and watermarked panels for a high-class feel; the seats feature a novel and unique design of staggered rows of square perforated textures, complemented by beige lining for a simple and cozy look.
Multifunction steering wheel with Cruise Control System(CCS)
The instrument panel is a 7-inch LCD instrument cluster, which integrates information such as oil pressure, electric power, gas storage capacity, average fuel consumption, etc., allowing you to grasp the dynamic information of the vehicle in real time.
Optional 10-inch multimedia touch screen, integrating multimedia, Bluetooth, air conditioning and other functions
AMT version also with electronic handbrake and AUTOHOLD automatic parking function, which can easily cope with stop-and-go urban working conditions, and no slippery slope starting, making transportation work safer and more reliable.
The shift force is 20-30N,which brings a more relaxed and pleasant driving experience for drivers.
Fully wrapped seat with unilateral movable armrest for better arm support. In addition, optional airbag shock-absorbing seats are available to further enhance driving comfort.
Storage space above the sun visor makes driving even easier.
The interior color scheme is mainly brown, black and red.

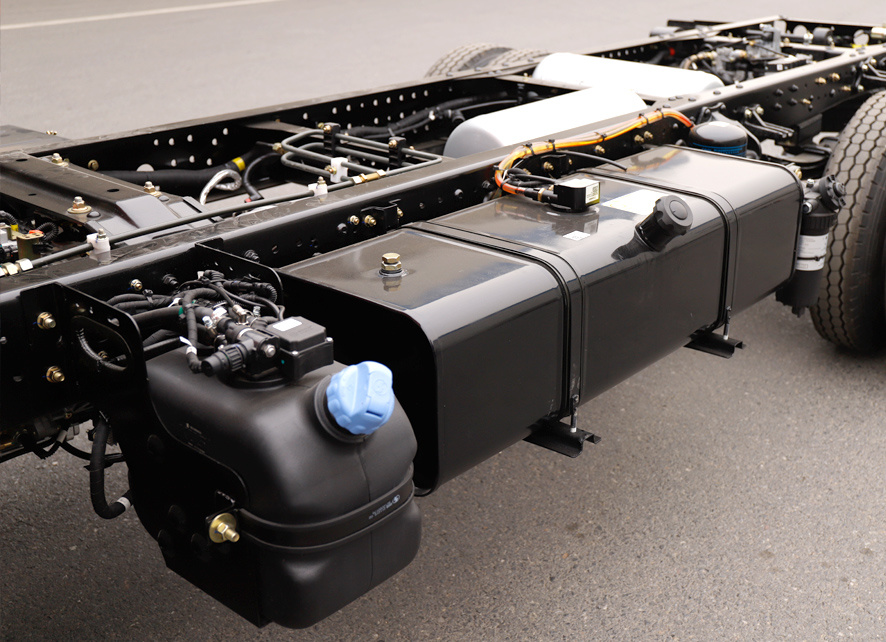

Chassis

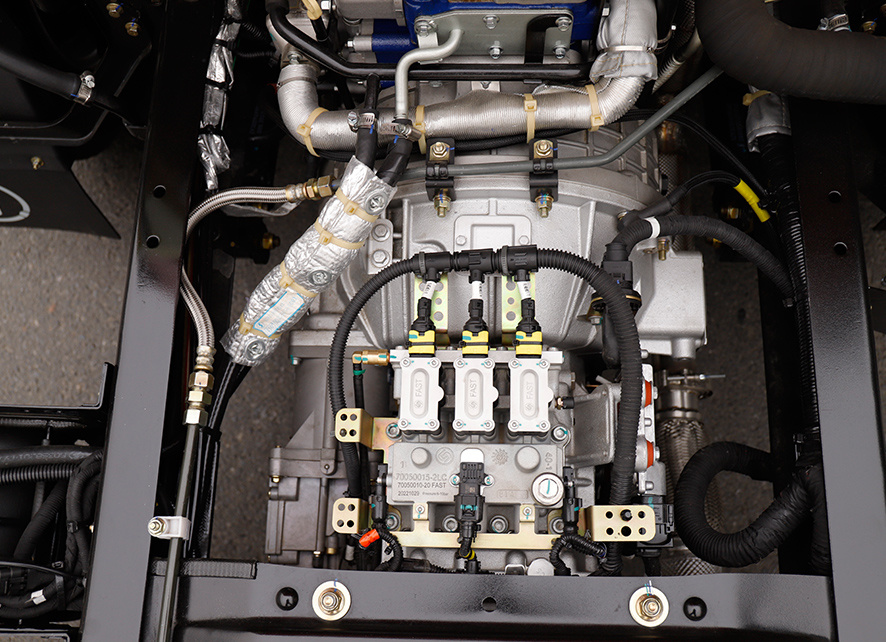

Optimized Vehicle Powertrain Matching, Effortlessly Handling Various Conditions like Frequent Starts in Urban Logistics
Components are strictly inspected according to ECE standards and national quality standards. The key components of the vehicle undergo rigorous fatigue life verification to ensure high vehicle availability.
The air circuit adopts German VOSS quick-insertion technology, airtight performance industry, while adopting APU module (integrated air dryer, four circuit protection valve in one air treatment unit, brake safety is guaranteed;
All straight beams, wider wheelbase, and a brand-new adjustable chassis structure is adopted. The stiffness of the leaf spring is optimally matched with the damping of the shock absorber, and the average vibration isolation of the suspension system is ≥8bD. The liquid-filled suspension system improves the vibration isolation performance of the cab and makes the driver more comfortable in the driving.

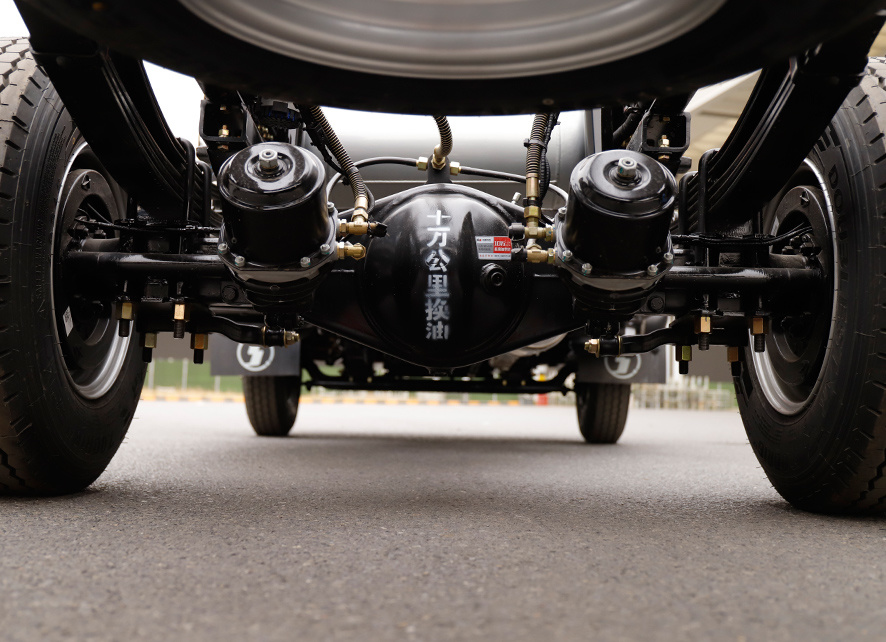

It is equipped with Hande, the maintenance-free front and rear axles, to provide various tonnage rear axles and different forms of leaf springs according to load requirements, which fully meet the requirements of various subdivided urban transportation.
“Making Favorite & Reliable Trucks.”
The modification options are diverse and can be used for various vehicles such as fence goods vehicle, dump truck, box dump truck, platform tractor, truck-mounted crane, tow truck, and sanitation vehicle.

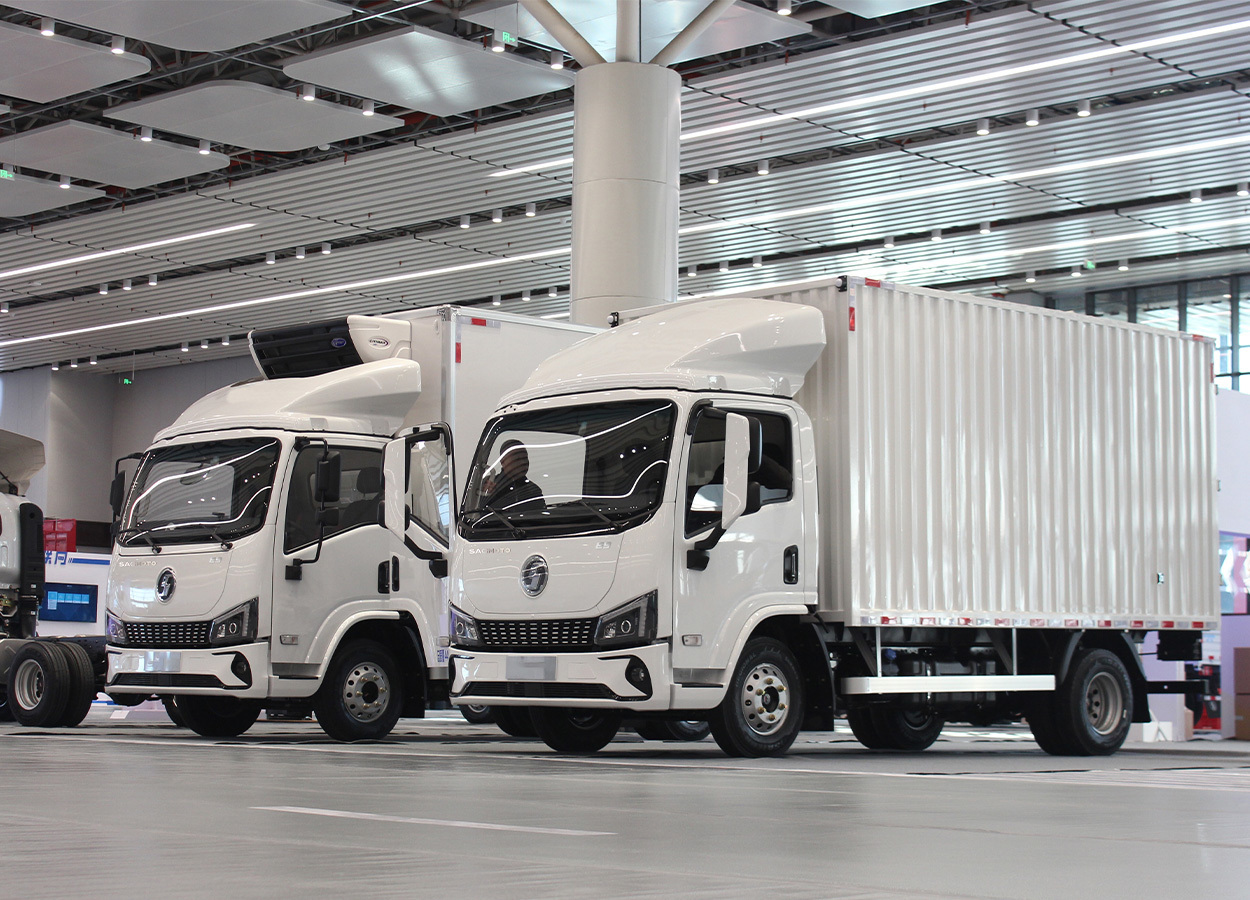

E9 Series Products
High-strength H-type steel frame structure body, full steel plate cab, integral door, effectively protect the safety of occupants.
High-strength chassis + reinforced tyres + high-stress leaf springs + reinforced rear axle, to ensure quality load bearing.
The main seat is a full wrap-around airline seat, which is more wraparound and more comfortable.
The car-like display instruments and 10-inch multimedia display meet the user's need for smart technology.
Hydraulic power braking, braking distance is short, more adaptable to the city road frequent starting and stopping, driving safer.
The turning diameter is only 11.1m, which makes the whole vehicle more passable and easier to turn around. The height of the top platform is low, so it saves time and energy for loading and unloading.
The car-like display instruments and 10-inch multimedia display meet the user's need for smart technology.
Hydraulic power braking, braking distance is short, more adaptable to the city road frequent starting and stopping, driving safer.
The turning diameter is only 11.1m, which makes the whole vehicle more passable and easier to turn around. The height of the top platform is low, so it saves time and energy for loading and unloading.
The car-like display instruments and 10-inch multimedia display meet the user's need for smart technology.
Hydraulic power braking, braking distance is short, more adaptable to the city road frequent starting and stopping, driving safer.
The turning diameter is only 11.1m, which makes the whole vehicle more passable and easier to turn around. The height of the top platform is low, so it saves time and energy for loading and unloading.
The car-like display instruments and 10-inch multimedia display meet the user's need for smart technology.
Hydraulic power braking, braking distance is short, more adaptable to the city road frequent starting and stopping, driving safer.
The turning diameter is only 11.1m, which makes the whole vehicle more passable and easier to turn around. The height of the top platform is low, so it saves time and energy for loading and unloading.
Strength meets the latest ECE, R29.03 commercial vehicle safety test standard.
Four-point full-floating suspension, coil spring damping, professional tuning, provide better comfort
Parts are strictly inspected according to ECE standards and national quality standards. The cab, frame, leaf spring and other key parts of the whole vehicle have gone through strict fatigue life verification, so the reliability is fully guaranteed and the
E9 Series Configuration
E9
Categories
Cargo Truck
GVW
8T/12T
Wheelbases（mm）
2800,3200,3400
Cab
E9 single-row/2020cab
Engine Power
130-240
Emissions
EuroⅢ-Euro V
Gearbox
5MT/6MT/8MT
Front Axle
2.2T/2.7T
Configuration
Drive Axle
3.5/6T
Chassis（mm）
192-132/4.5single-row/150/4.5single-row
Leaf Spring
2/2+1/3/3+2
Tyres
6.50R16LT/12PR，7.00R16LT/8PR(strengthened)
Braking
AEB/ESC/ABS/Exhaust brakes
Oil Tank
120L/200L
Top
Dimensions
3550，5000，5250×2100，2400×400,600 with fence (guardrail);
5250×2400×600 Skate；
5000，5250×2100，2400×2100 Box；
Others
Main
Cab：Mechanical seats, electric windows, automatic temperature-controlled AC, 5-inch colour LCD combined instrumentation, multifunctional steering wheel with cruise control, Bluetooth radio (with 5-inch screen), central locking, integral mirrors, halogen headlamps. Chassis：Air filter; power steering; power clutch; electric horn; air brake; aluminium air reservoir; 80 Ah maintenance-free battery; seat belt locking alarm; Automatic Slack Adjuster (ASA), brake wear alarm device; spare wheel;
Optional
Cab: LED headlamps; integral e-adjustable heated mirrors; 10 .1" multimedia screen + reversing camera; top deflector; aluminium alloy rims.
Customized services
To thank your support for SAG Commercial Vehicle Company, we provide you with an overseas comprehensive warranty policy. Extra long warranty period with unlimited mileage: 24 months for tractor, 18 months for cargo truck, 12 months for dump truck, 18 months for special vehicles. Fast and flexible after-sales appointments, 24-hour standby. If your vehicle experiences an irreparable breakdown during operation, do not hesitate, dial our local service hotline immediately, and we will promptly arrive on-site to assist you with the repairs.
We engage in close collaboration with overseas partners, utilizing a unique support model that combines overseas channel reserves with precision components pre-preparing. This effectively enhances the availability of after-services. Furthermore, based on your vehicle holdings, we can formulate personalized components assurance plans, ensuring you can get maintenance resources more quickly and conveniently.
24 months Tractor
18 months Cargo Truck
12 months Dump Truck
18 months Special Vehicles
