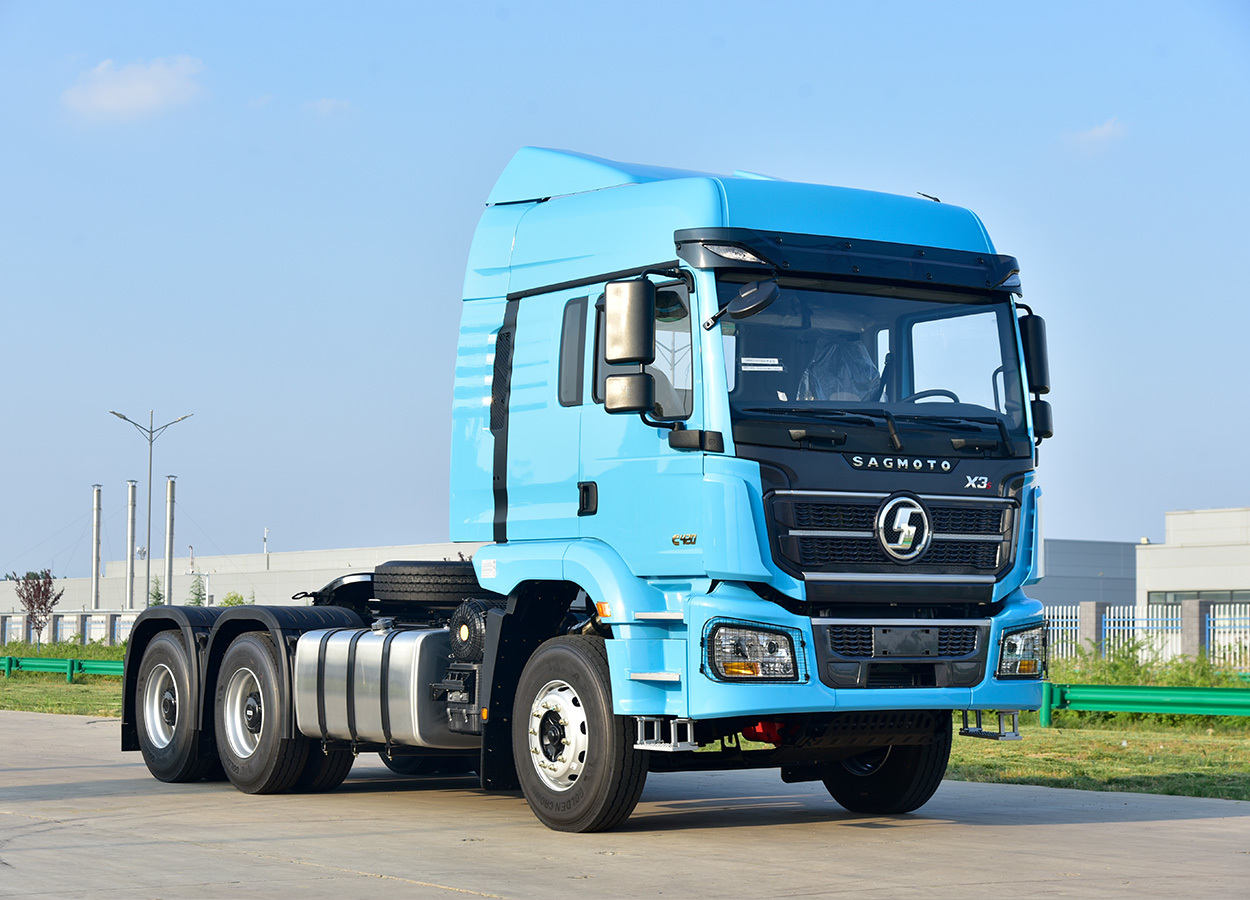

X3s
X3s
The X3S series narrow cab is designed specifically for intercity transportation and construction work. Excellent passability greatly improves productivity efficiency, and the flat chassis layout achieves a minimum ground clearance of 560 millimeters. The approach angle and departure angle are greater than 28 degrees, allowing for free movement in various corners of the city and easy completion of transportation tasks.
Exterior
By applying a four point air suspension and lateral damping shock absorbers, driving stability and ride comfort have been greatly improved, making it more adaptable to complex roads and easier to drive.
• The overall rearview mirror is equipped with electric adjustment and electric heating function
• Standard version with LED automatic headlights, integrated design of far and near light, fog light, daily running light, far irradiation range, strong penetration, etc. At the same time, the headlights can also automatically turn on and off the headlights according to the light
Interior Decoration
Automatic air conditioning, multimedia, Bluetooth and other functions to meet users' daily needs
The dashboard adopts the form of LCD+mechanical pointer gauge, which allows for clearer understanding of vehicle information such as fuel level, water temperature, battery level, and oil pressure through the screen
Surround style center console design, classic four pair multifunctional steering wheel, buttons, can be operated without leaving the steering wheel
The four point airbag suspension system in the driver's cabin effectively buffers and enhances driving comfort on strong bumpy roads
The integrated stamping forming cab frame, combined with robot automatic welding technology, enhances the cab's load-bearing capacity, stability, and other aspects
The cab adopts polyester sound insulation material and integrated foam floor mat to bring excellent NVH performance and focus when driving
Equipped with 840mm wide warm color lining sleeper for a great resting experience
Optional hydraulic or air seats, combined with four point air suspension shock absorbers in the cab, greatly enhance driving smoothness and ride comfort

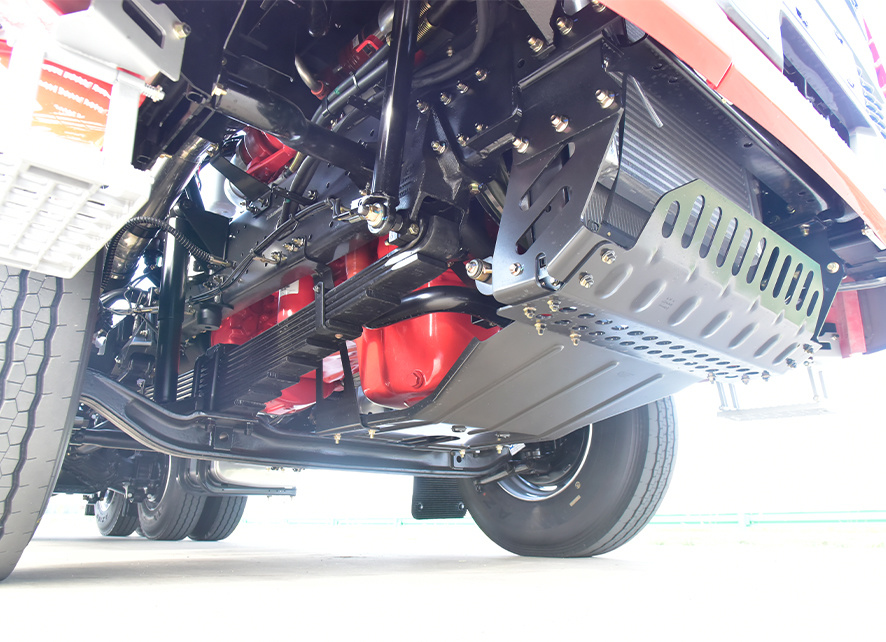

Chassis
Parts suppliers are from imported manufacturers like Knohl and Bosch, which ensures the excellent performance of the whole vehicle in details, thus improving the quality of the whole vehicle.
Cummins is an MC series engine that can provide surging power up to XXX horsepower
FAST transmission provides a transmission that balances economy and reliability.

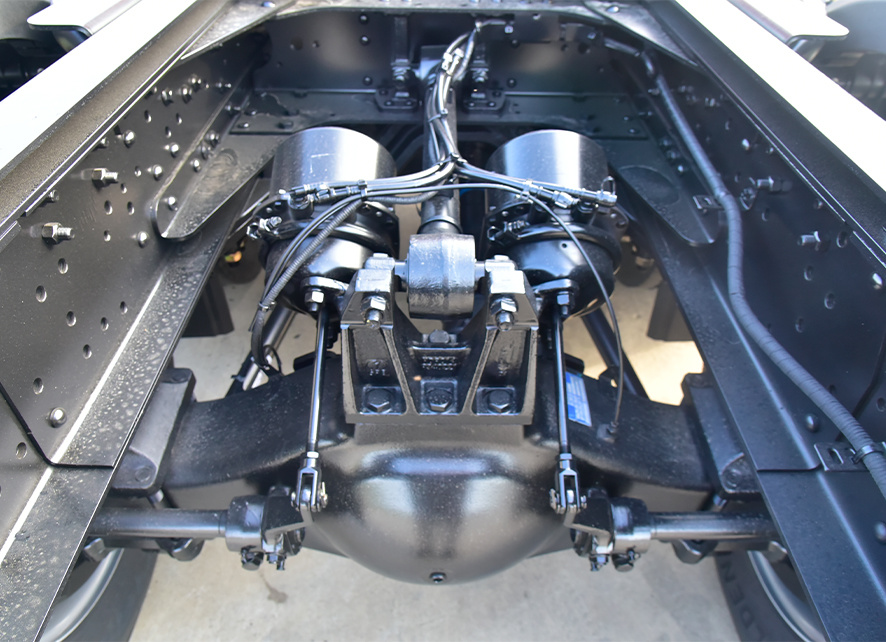

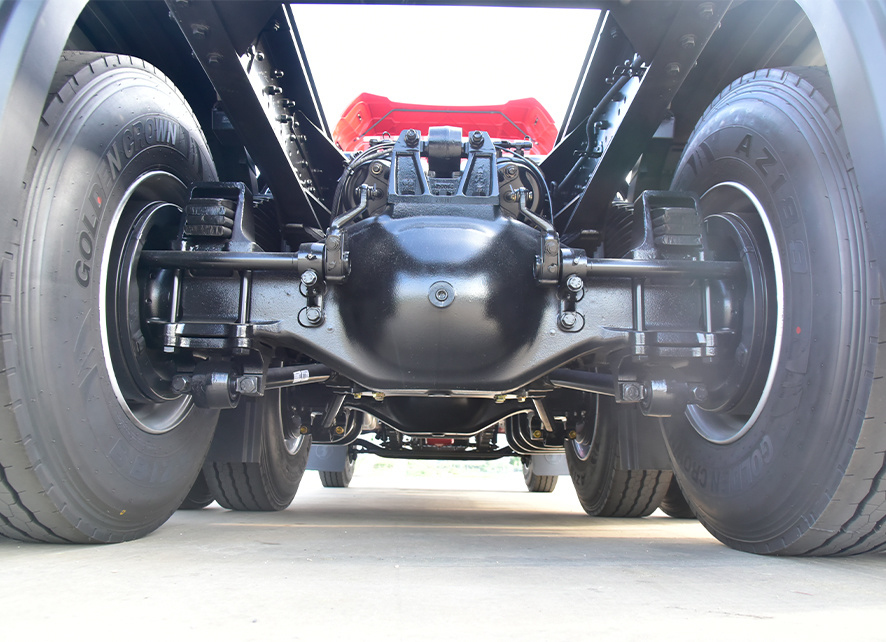

Hande axle adopts cutting-edge technology, which has the advantages of strong load-bearing capacity, high torque, and long maintenance
The 10 bar ultra large dual circuit braking system generates greater braking torque, resulting in better braking effect and safer braking. The chassis harness has reached IP67 protection level, and high-quality connectors and harness accessories improve the reliability of the vehicle harness
X3s Parameter Table
X3s
Categories
Trailer Truck
Trailer Truck
Dump Truck
Dump Truck
Lorry Truck
Basic Configuration
Driving Type
4×2
6×4
6×4
8×4
6×4
GVW/GCW
≤ 50 T
≤ 50 T
≤ 45 T
≤ 70 T
≤ 40 T
Engine
Brand
Cummins
Cummins
Cummins
Cummins
Cummins
Horsepower（PS）
450/460/490
420/450
420/440
420/450
375/420
Emission Standard
Euro Ⅲ-Ⅴ
Euro Ⅲ-Ⅴ
Euro Ⅲ-Ⅴ
Euro Ⅲ-Ⅴ
Euro Ⅲ-Ⅴ
Transmission
Gear Shift
16
12
12
12
10
Wheelbase（mm）
3600-3800
3175+1400
3775+1400
1800+2775+1400
5175+1400
Suspension（mm）
850×270/8+5
850×300/8+5
850×300/(8+7)
850×300/8+7
850×300/8+5
Front Axle
7.5T
7.5T/9.5T
9.5T
9.5T
7.5T
Rear Axle
13T
16T
16T
16T
13T/16T
Frame
10/9+6
10/9+6
10/12
14/14/12
10/12
Tyres
12R22.5/18PR
315/80R22.5/18PR
12.00R24/20PR
315/80R22.5/18PR
315/80R22.5/18PR
Functional Configuration
LCD Instrument Cluster
●
●
●
●
●
Bluetooth radio (with 5-inch screen)
●
●
●
●
●
Air Conditioner
●
●
●
●
●
Multi-function steering wheel
○
○
○
○
○
Parking Air Conditioner
○
○
○
○
○
Multimedia Screen
○
○
○
○
○
Independent Heating
○
○
○
○
○
● Standard Configuration
○ Optiona
X3s Series Products
Customized services
To thank your support for SAG Commercial Vehicle Company, we provide you with an overseas comprehensive warranty policy. Extra long warranty period with unlimited mileage: 24 months for tractor, 18 months for cargo truck, 12 months for dump truck, 18 months for special vehicles. Fast and flexible after-sales appointments, 24-hour standby. If your vehicle experiences an irreparable breakdown during operation, do not hesitate, dial our local service hotline immediately, and we will promptly arrive on-site to assist you with the repairs.
We engage in close collaboration with overseas partners, utilizing a unique support model that combines overseas channel reserves with precision components pre-preparing. This effectively enhances the availability of after-services. Furthermore, based on your vehicle holdings, we can formulate personalized components assurance plans, ensuring you can get maintenance resources more quickly and conveniently.
24 months Tractor
18 months Cargo Truck
12 months Dump Truck
18 months Special Vehicles
