NEW ENERGY

Comfort - Smart

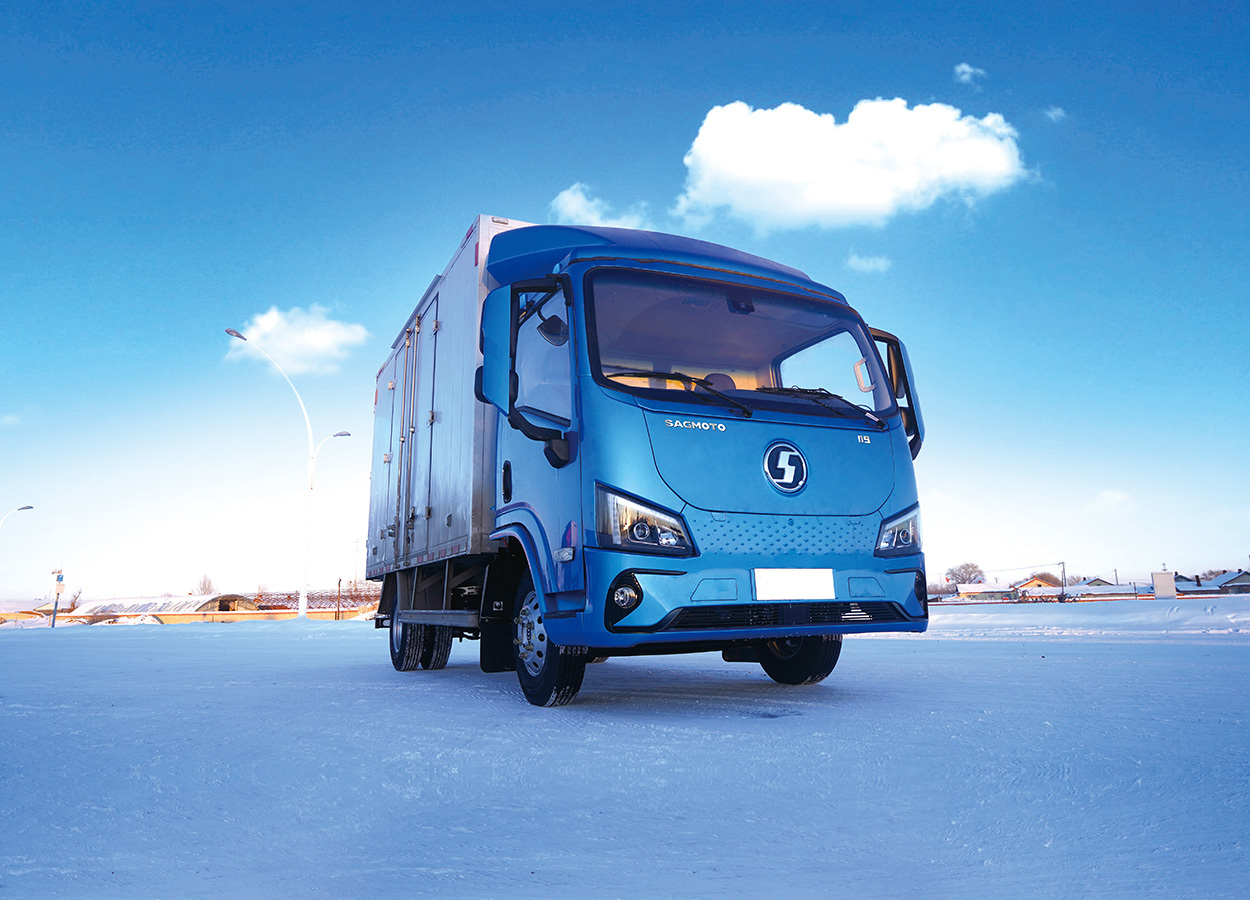

i9 series electric light truck comprehensively meets the needs of market segments such as express delivery, supermarket distribution, less-than-truckload (LTL), cold chain, etc. We devote to develop a new product with long endurance, high attendance rate, intelligence, and leading technology.

scroll down

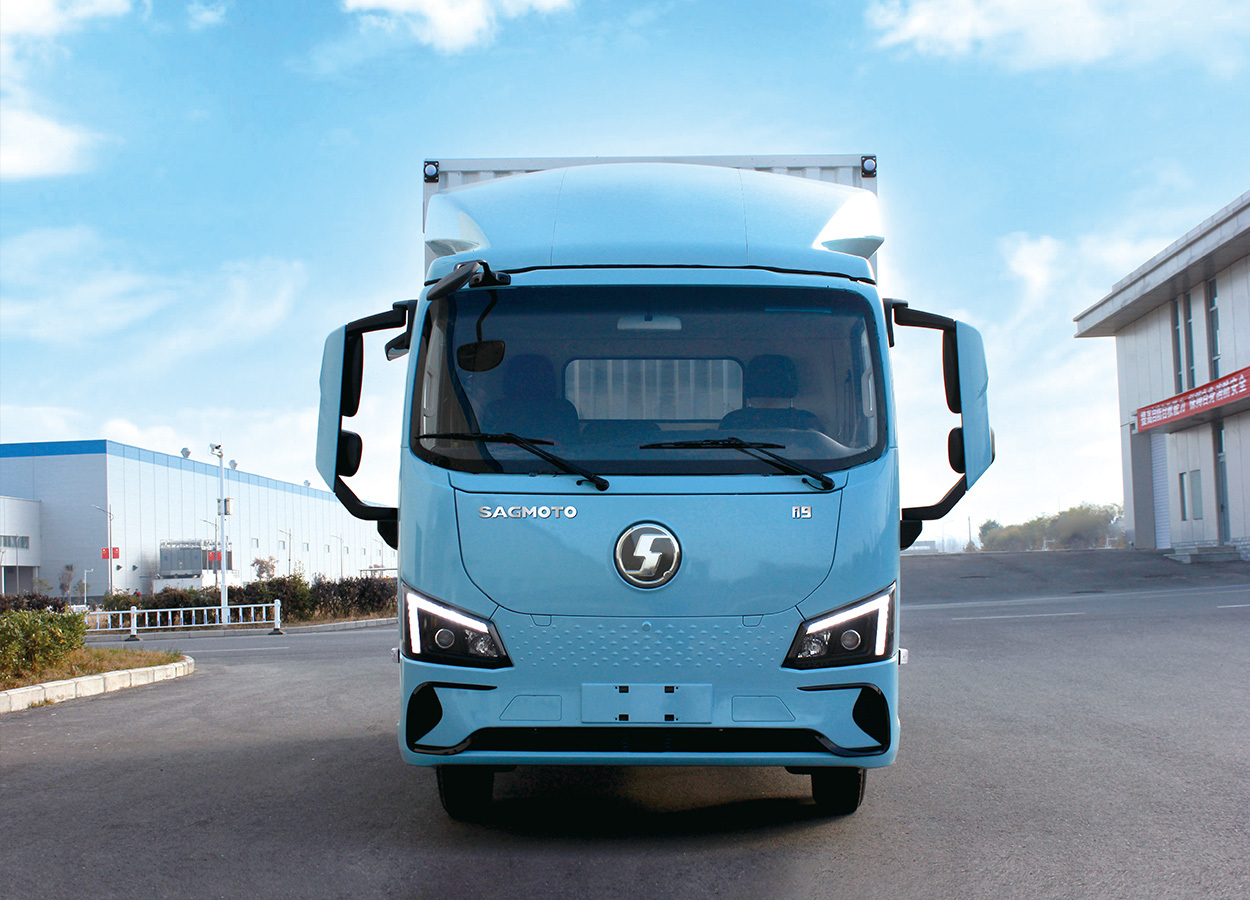

Streamlined exterior design

Brand-new product appearance, parameterized grille+integrated mask+bionic bumper design, exclusive features of new energy. The cab crash performance can meet the crash requirements of ECE_R29. Integral electric heating rearview mirror with ultra-narrow frame and larger area. Larger air deflector, effectively reducing the wind resistance. Optional LED daytime headlights, featured in eagle-eye blackened shape. The noise inside the vehicle at idle speed is as low as 50.1dB.

Interior

You can feel the unprecedented experience of the cabin, which is close to the passenger car.

The vehicle uses ergonomic design seats and excellent sound insulation and noise reduction technology to provide a more comfortable riding environment for drivers and passengers.

10-inch multimedia screen and rearview camera provide a convenient and agile driving experience.Automatic air conditioner instead of manual operation can easily keep the constant temperature in the car, which is convenient and comfortable.

Steering wheel steering assist for easy driving.7-inch color LCD instrument, makes it possible to read all kinds of data in driving intuitively and clearly.

The interior color scheme is mainly brown, black and red.

The driver's airbag seat and color matching leather design are more comfortable during driving and can adapt to different heights of drivers and passengers.

Rotary gear button shift, two driving modes, easy to switch.

Storage space above the sun visor makes driving even easier.

The air tightness of the whole vehicle is improved, and the noise inside the vehicle at idle speed is as low as 50.1dB.

i9 Product advantages

Customized working condition strategies according to different scenarios of urban working conditions and high-speed working conditions, improving the efficiency.After the vehicle is turned off, it wakes up regularly to detect the battery voltage. When it is lower than the under-voltage protection threshold, it intelligently starts DCDC to recharge the vehicle battery. Battery detachment alarm: after the power battery is detached from the vehicle, the detachment status is reported to the platform through Tbox. Car-to-car charging: the DC charging port of the vehicle can be compatible with the discharge function, which supports external devices to get electricity from the DC charging port. Insulation monitoring After the insulation failure of the air conditioning circuit occurs, the air conditioner can be intelligently detected and disconnected, which does not affect the safe driving of the vehicle.

制动能量回收是电动车最主要的能量回收方式，回收车辆在制动或惯性中释放出的多余能量，并通过发电机将其转化为电能，转存至蓄电池当中用于汽车行驶。

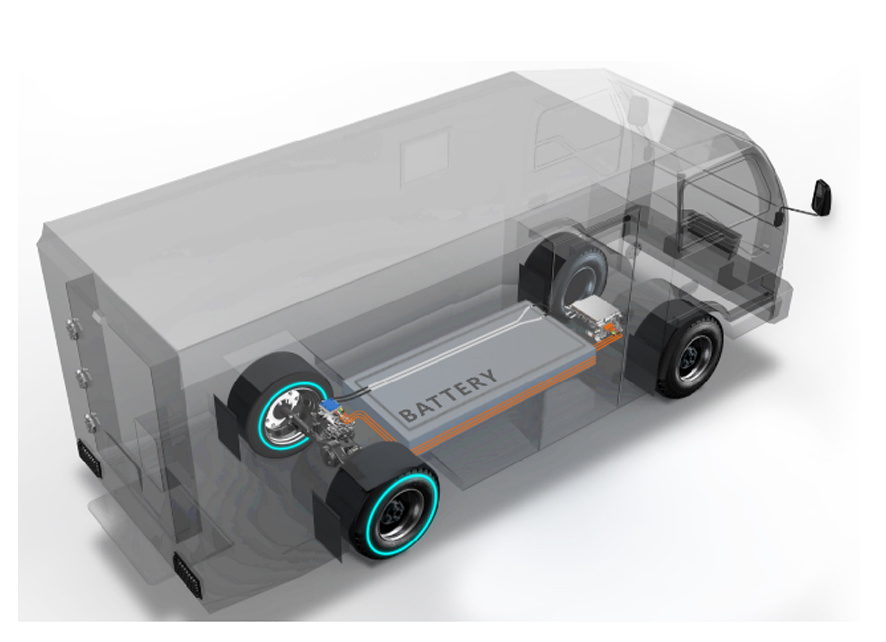

Equipped with Contemporary Amperex Technology Co., Limited 86.55kWh/100.46kWh lithium iron phosphate battery, with high density and long cycle life. In addition, it can be used at -30~60℃.750kw charging pile, with 10%-100% power needs to be charged for 1 hour.

搭载宁德时代86.55kWh/100.46kWh磷酸铁锂电池，高能量密度、高安全性、循环寿命长

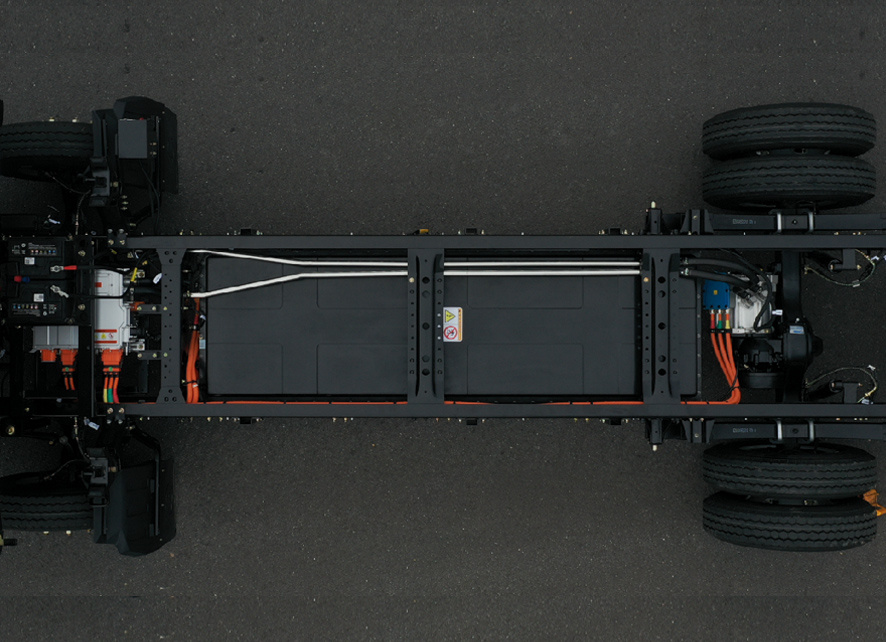

180 through frame assembly+local reinforcement scheme: 800mm in front and back width, 610L high-strength steel design, making the whole vehicle a stronger bearing capacity.

集成TM电机驱动器、PDU高压配电器、EPS助力转向油泵、ACM空压机气泵、DC-DC(直流变换器)

Customized five-in-one controller: integrating TM, PDU, EHPS, ACM and DCDC, with higher power density and reliability;

集成电驱桥将电机与后桥整合在了一起,后桥承担了发动机、变速箱、后桥、差速器原有的功能

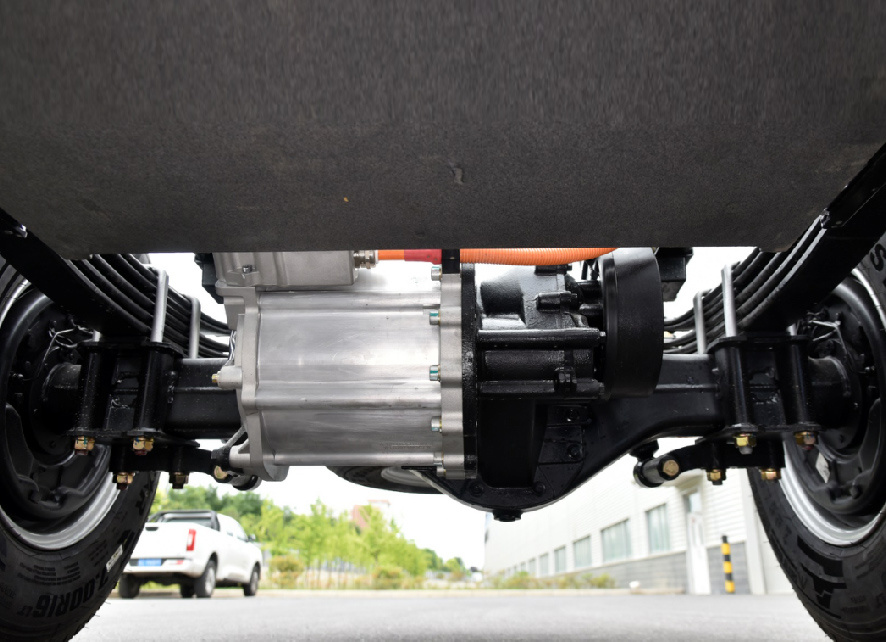

Hande integrated electric drive bridge, without transmission and gearbox, has higher energy conversion efficiency and lower vehicle energy consumption.

升级款扁线电机：峰值扭矩360N.m，较行业主流产品提升10%左右；相对于圆线电机扭矩提升12.5%，重载起步能力强

Huichuan flat wire motor has the highest motor speed in the industry, with rated power of 65 kW, rated torque of 160N.m and peak torque of 360N.m, and the motor in operation is always in a high efficiency area.

i9 Series Configuration

Model

SX1040E3D16B3411N2JEN

Basic Configuration

Driving Type

4×2

GVW

≤ 8T

Cab（mm）

i9/2020

Powertrain

Model

Peak power

Rated torque

TZ220XS-HD002

120kW

360N·m

Wheelbase（mm）

3360

Frame（mm）

800×（135-180）/4.5

800×（130-190）/5

Power Battery

100kwh

86kwh

Front Axle

2.2T

Rear Axle

3.5t/16.193

Tyre

7.00R16LT/8PR

Suspension

2/2+1

Dimension of Cargo Body（mm）

4150×2100×2100 van

4150×2100×400 stake

4150×2100×400 dropside

4150×2100×2100 van

4150×2100×400 stake

4150×2100×400 dropside

Functional Configuration

Power Steering，Electric Power Windows and Doors + Central Lock，Remote Control Key，Air Conditioner，LCD instrument .

Customized services

To thank your support for SAG Commercial Vehicle Company, we provide you with an overseas comprehensive warranty policy. Extra long warranty period with unlimited mileage: 24 months for tractor, 18 months for cargo truck, 12 months for dump truck, 18 months for special vehicles. Fast and flexible after-sales appointments, 24-hour standby. If your vehicle experiences an irreparable breakdown during operation, do not hesitate, dial our local service hotline immediately, and we will promptly arrive on-site to assist you with the repairs.

We engage in close collaboration with overseas partners, utilizing a unique support model that combines overseas channel reserves with precision components pre-preparing. This effectively enhances the availability of after-services. Furthermore, based on your vehicle holdings, we can formulate personalized components assurance plans, ensuring you can get maintenance resources more quickly and conveniently.

24 Months

24 months Tractor

18 Months

18 months Cargo Truck

12 Months

12 months Dump Truck

18 Months

18 months Special Vehicles
