SAGMOTO 4X4 Series

In 1973, SAGMOTO independently developed and produced China's first 5-ton 4X4 off-road vehicle, opening a new chapter for all-wheel drive vehicles, from none to existence and then from existence to excellence. The SAGMOTO 4X4 series of all-weather and all-terrain off-road vehicles are widely used in material transportation, evacuation, rescue missions, and infrastructure construction due to their durability, high performance, and high load-bearing capacity.

scroll down

Multiple widths of cabs are available for selection.

Series 9:

Horsepower range：130-140

Wheelbase range：3600-3800

Tonnage range：12t-14t

Series 7:

Horsepower range：160

Wheelbase range：3800

Tonnage range：14t-18t

Series 6:

Horsepower range：210

Wheelbase range：5000

Tonnage range：25t

The professional off-road design can easily handle various complex terrains and road conditions. Picture Presentation

Series 9

Maximum output power：103kW Maximum output torque：420N.m

Series 7

Maximum output power：118kW Maximum output torque：520N.m

Series 6

Maximum output power：155Kw Maximum output torque：710N.m

The professional off-road design can easily handle various complex terrains and road conditions. Picture Presentation

It can provide stable and efficient power output in various working conditions, and can perform excellently in climbing, acceleration, and high-speed driving.

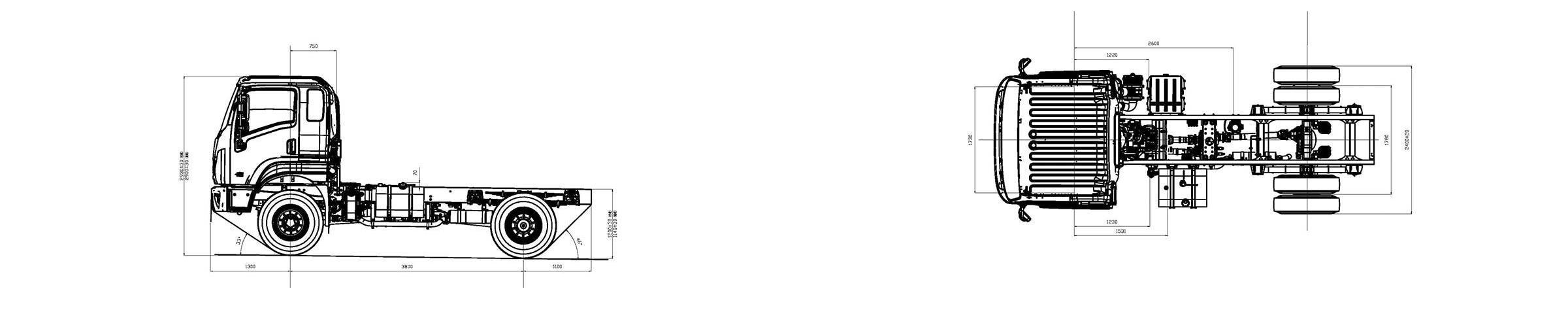

Approach angle	Departure angle	Breakover angle	Ground clearance
35°	45°	/	275

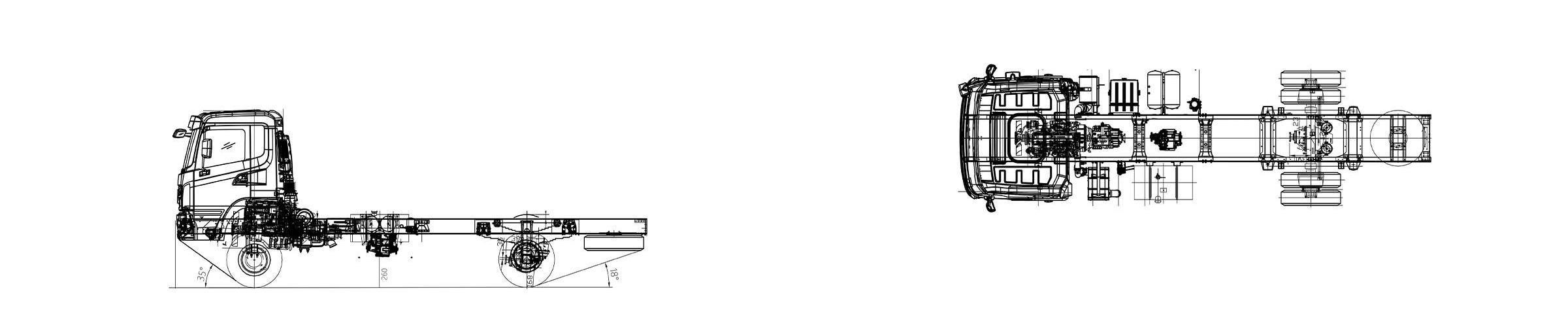

Approach angle	Departure angle	Breakover angle	Ground clearance
33°	46°	/	275

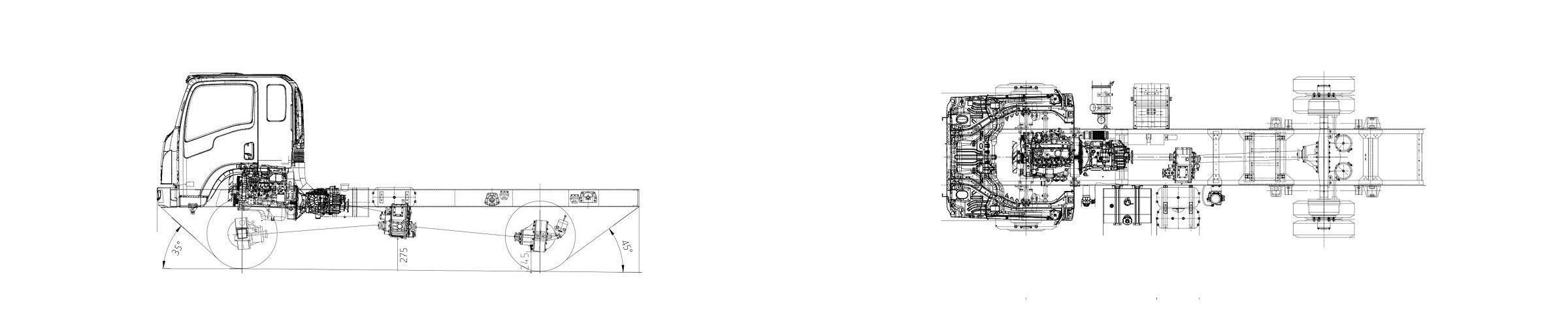

Approach angle	Departure angle	Breakover angle	Ground clearance
35°	18°	/	260

Comfortable cab configuration

Fully consider ergonomics for cab layout. The instrument panel is designed with a semi-enclosed structure of sedan, and all buttons are within reach to ensure driving safety.

The Series 9 cabin features a fixed front and mechanically suspended rear, effectively cushioning and providing a smooth ride even on rough and bumpy surfaces.

The Series 9 instrument panel employs a design that combines analog gauges with an LCD screen, allowing for intuitive and clear reading of vehicle driving data.

The Series 9 features fully enclosed airline seats that conform seamlessly to the back and waist, with optimized sponge density in the cushions for a suitable firmness and softness, providing a more comfortable ride.

The steering wheel of Series 9 is equipped with power steering to make driving easier for you.

The X9S features a widened sleeper bed for enhanced comfort during temporary breaks.

The Series 6 product features an air-cushioned shock-absorbing seat for the driver, assuring comfort during daily driving; the seat can be adjusted in multiple directions to reduce driving fatigue.

The Series 6 cabin features a thickened floor with sound insulation and double-layered sealed doors, achieving industry-leading performance in noise reduction and dust prevention.

The width of the Series 6 cabin reaches 2240mm, allowing for more freedom and ease of movement.

Higher capacity, stronger off-road capabilities, and more diverse functions

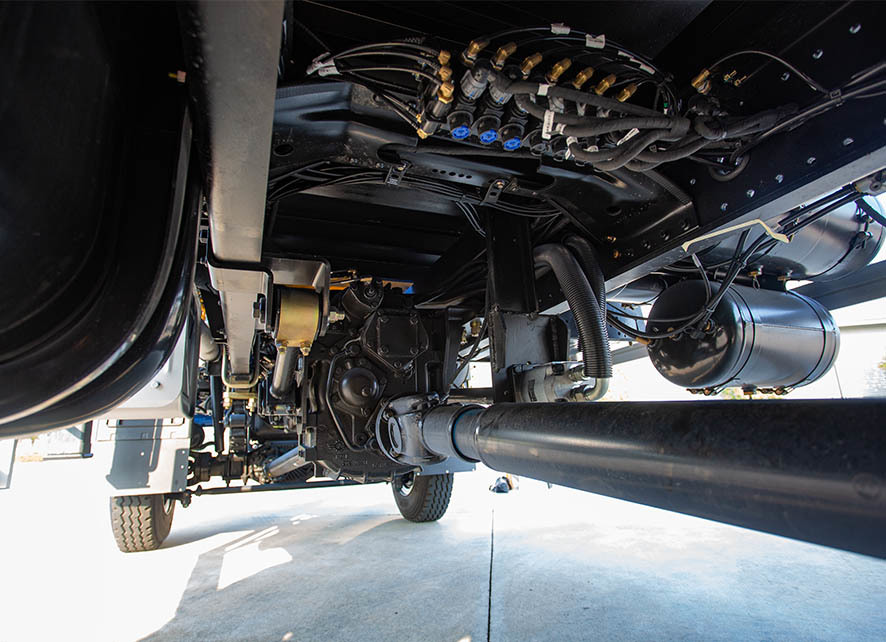

Efficient power chain application and excellent chassis configuration bring you a more outstanding experience.

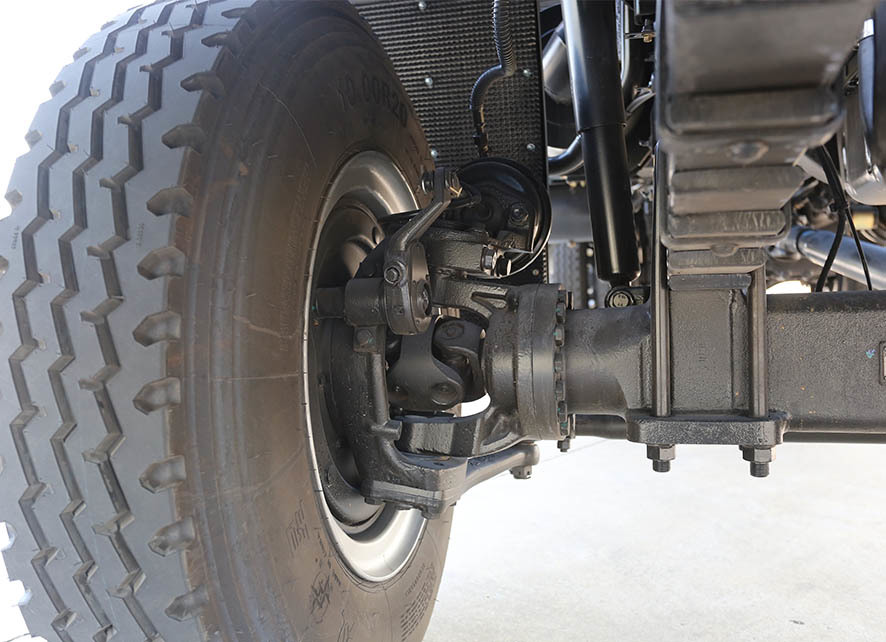

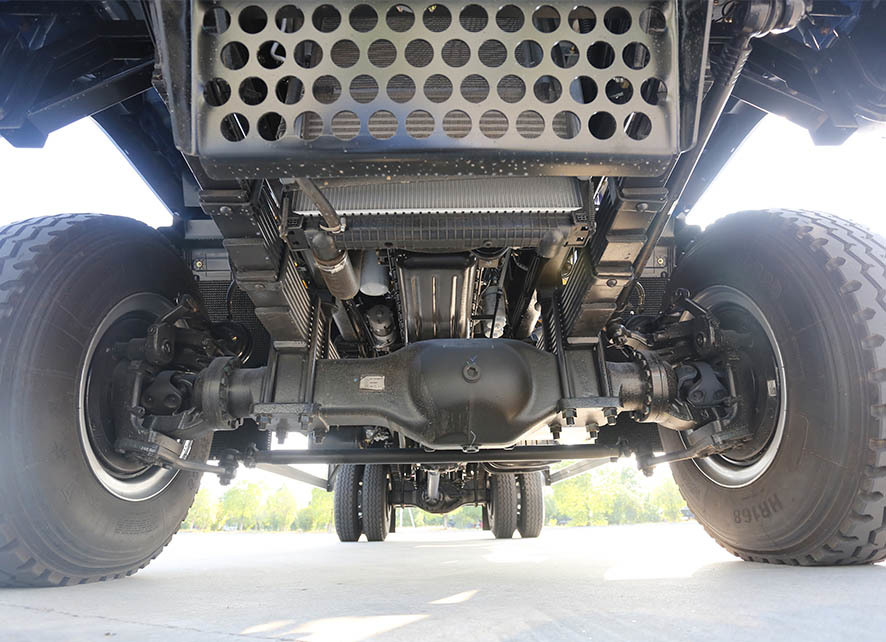

Equipped with a specialized suspension system and efficient 4*4 drive, it excels in the toughest terrains. The chassis and upper structure are integrated in design, providing various functional products such as fuel tankers, water tankers, dump trucks, and cargo trucks.

Double-layer frame design with locally triple-layer reinforcement for enhanced torsion resistance and high durability.

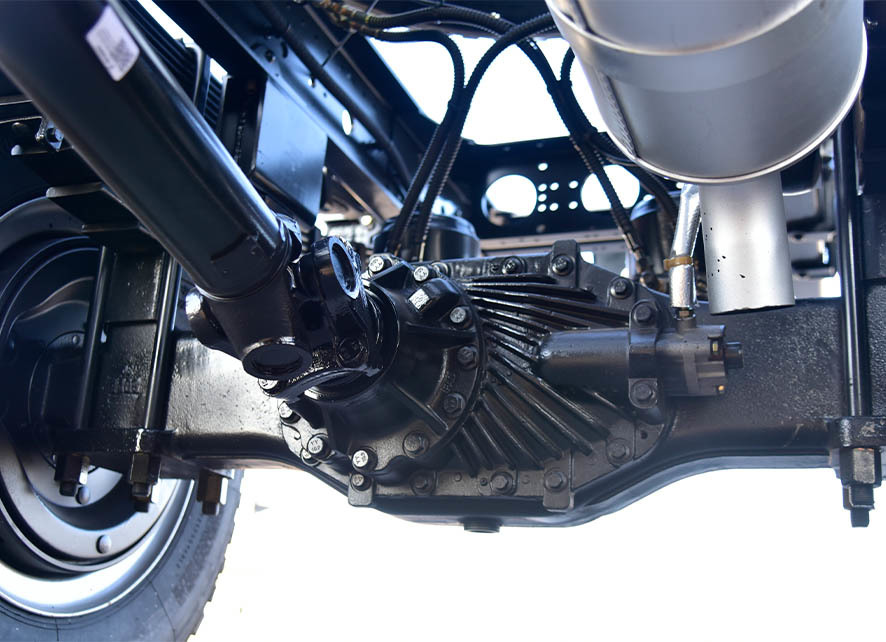

9 Series/7 Series full-time four-wheel drive, 6 Series part-time four-wheel drive.

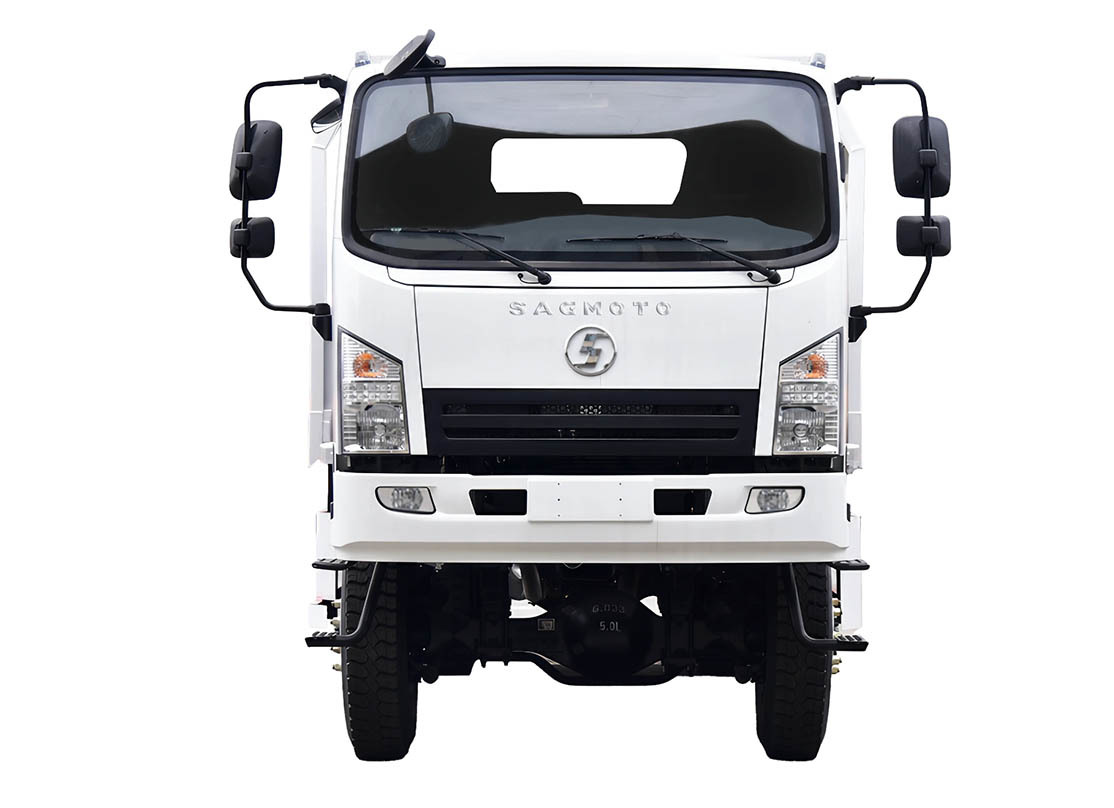

Reinforced oil pan guard, iron bumper, turn signal and taillight guards, offering high protection and enhancing vehicle adaptability in harsh road conditions.

The 9-series has a turning diameter of only 11.1m, stronger overall passability, easier U-turns, and a low cargo bed height for time-saving and labor-saving loading and unloading.

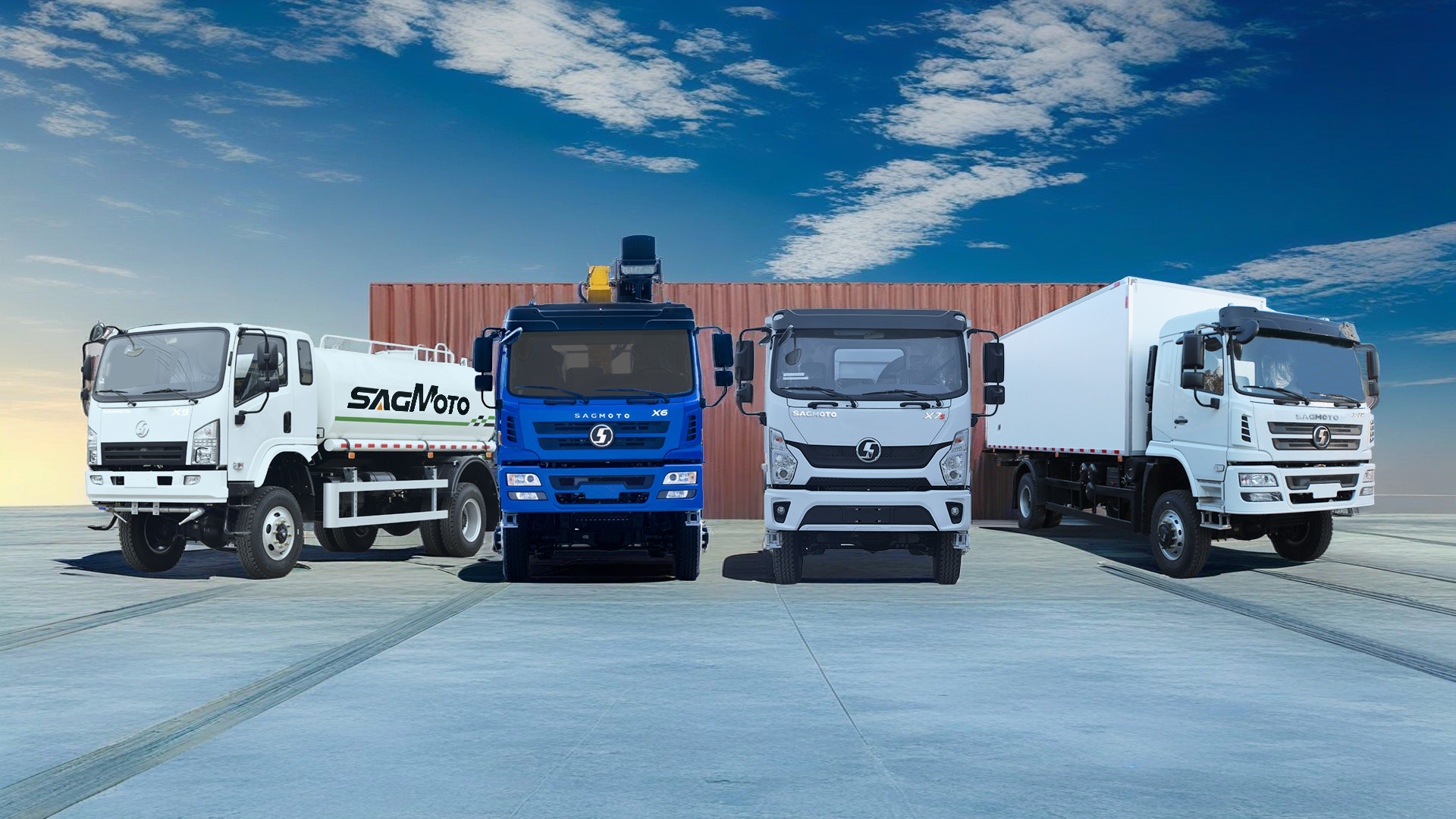

SAGMOTO 4X4

载货车

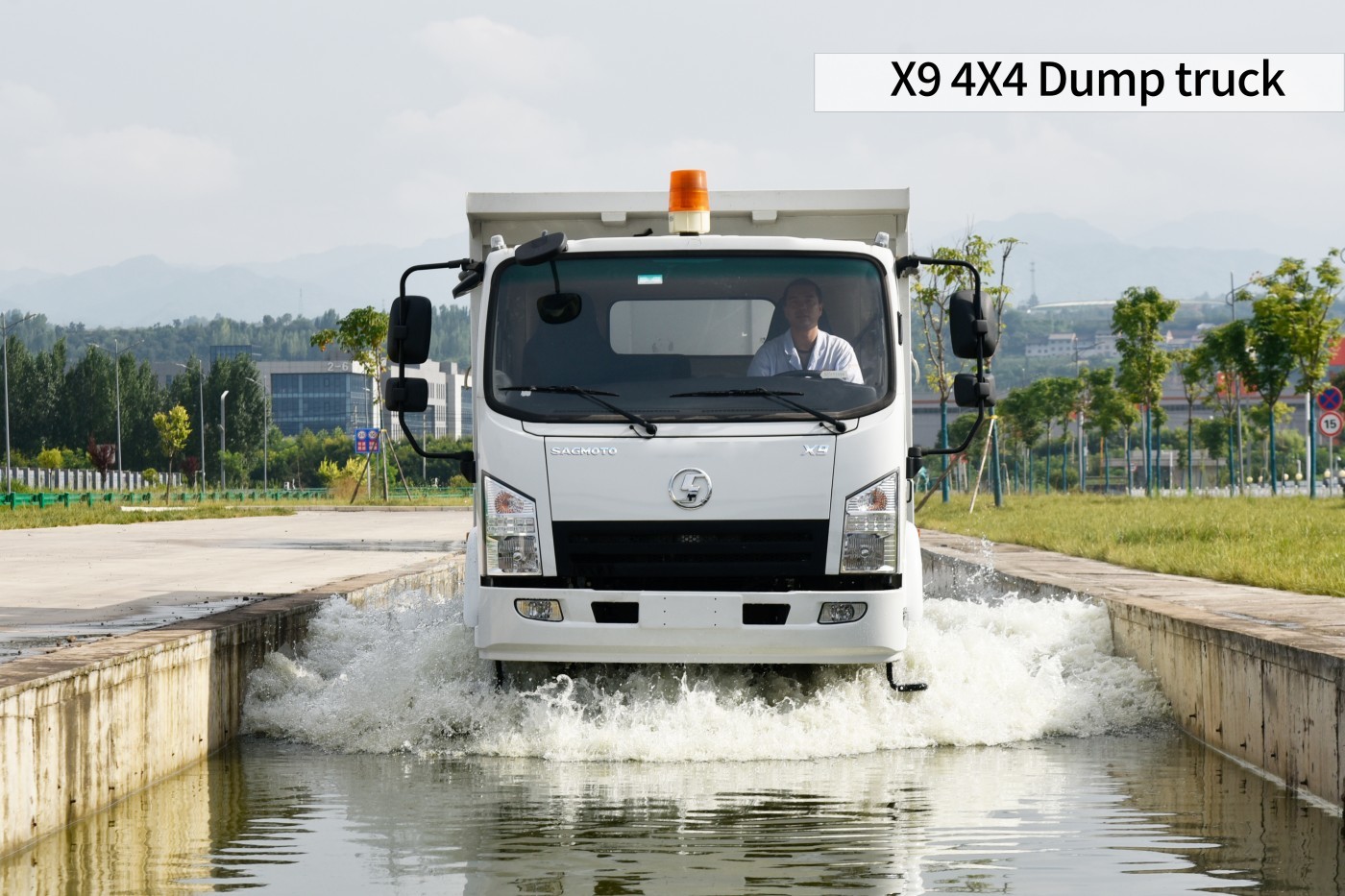

9 series

durability, high performance, and high load-bearing capacity

multiple of cabs are available for selection

Convenient to adapt to all kinds of fuel tankers, sprinklers, dump trucks

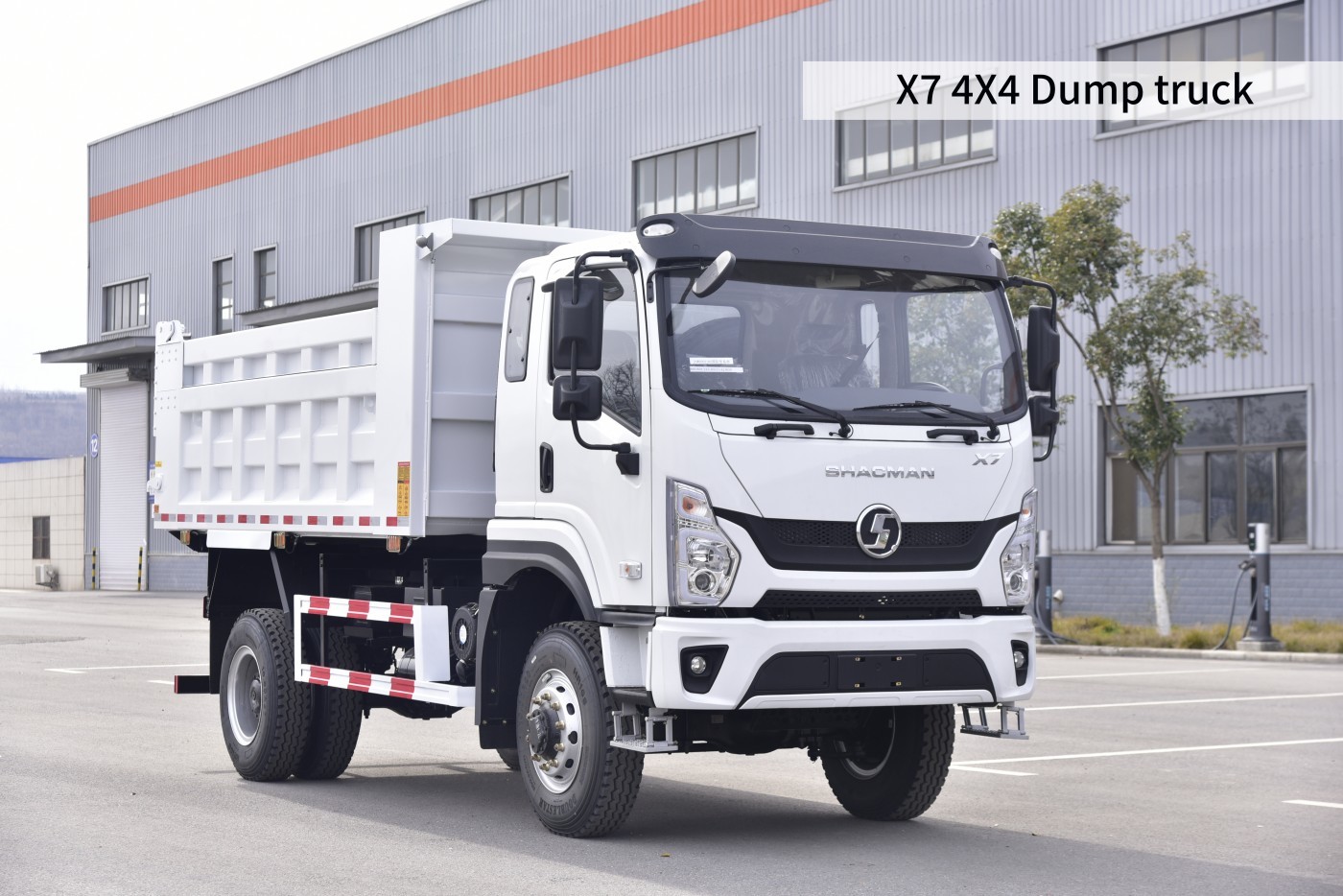

7 Series

powerful engine, excellent maneuverability

Reinforced oil pan protection grill

Double-layer frame design

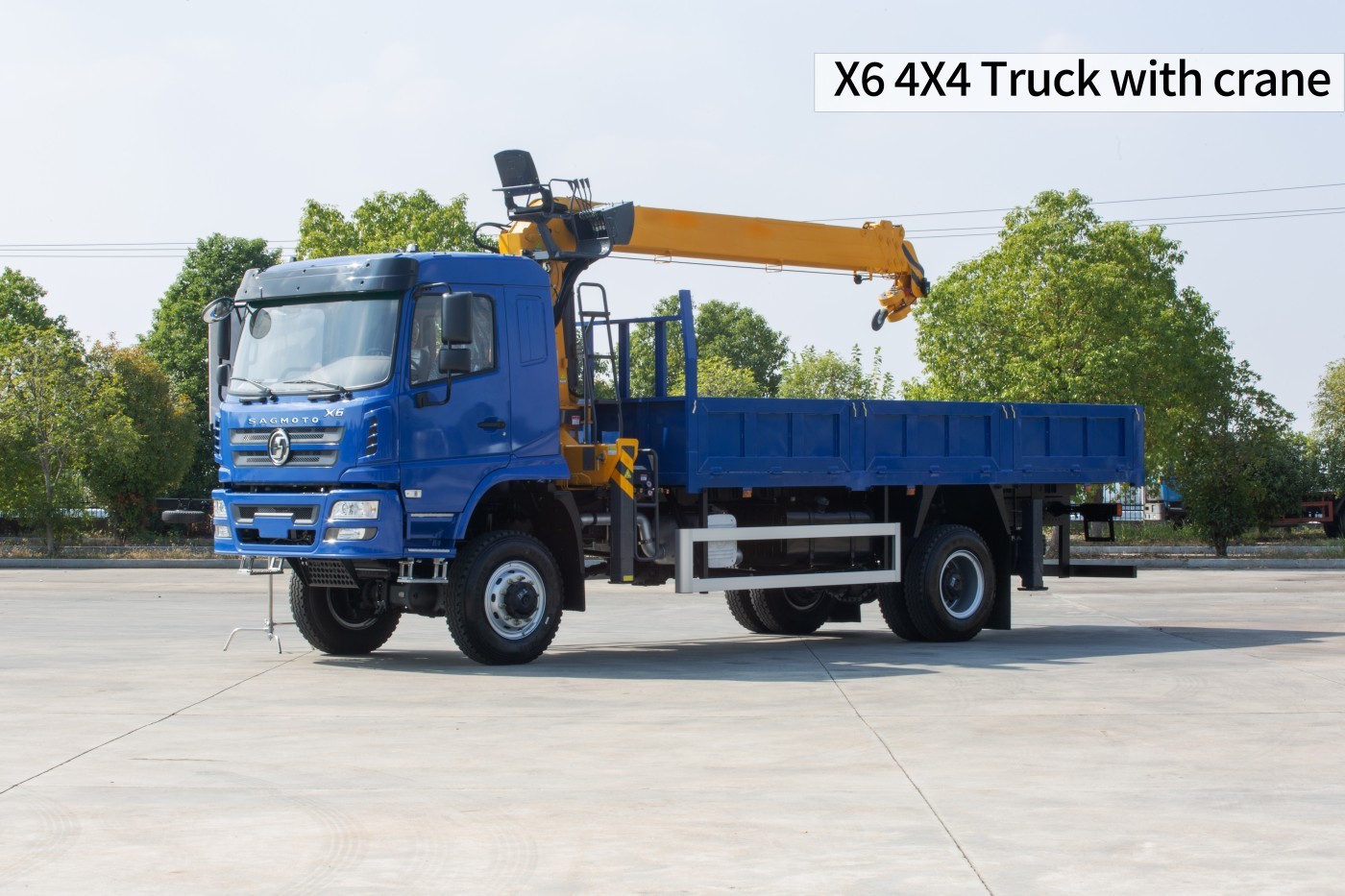

6 Series

Strong Power and Efficient Transportation

Reinforced Design, Iron bumper

Customized Upper-body

4X4 series model parameter table

Basic Configuration	Driving Type		4x4	4x4	4x4	4x4
	GVW		14t	12t	20t	25t
	Cabin (mm)		X9/1995	E9/2020	X7	X6/2220
	Engine	Horsepower (ps)	130-140	190-195	160	210
		Emission (L)	4.21	3.0	4.26	6.49
		Engine Power (N·m)	380-500	620	410-850	710
		Emissions	Euro II	Euro VI	Euro II-Euro V	Euro II
	Gearbox	Model	8JS85E-C	8JS75TE-C	8JS85TF-C	8JS85E-C
	Gearbox	Gear	8	8	8	8
	Wheelbases (mm)		3600	3360	3800	5000
	Frame (mm)		800×250/7+4 double layer	865×220/6+4/double layer	800×250/7+4 double layer	861×280/8+6 double layer
	Front Axle		2.5t/6.833	2.5t/6.333	3.5t/6.733	13t/6.733
	Rear Axle		10t/6.833	7.2t/6.333	10t/6.733	16t/6.733
	Leaf Spring		9/11+8	9/11+8	9/11+8	9/11+8
	Tyres		9.00R20/16PR	8.25R16LT/18PR	10.00R20/18PR	10.00R20/18PR
	Fuel Tank		130L	150L	200L	280L
Functional Configuration	Power Steering		●	●	●	●
	Clutch Booster		●	●	●	●
	Remote Control Key		●	●	●	●
	Air Conditioning		●	●	●	●
	Electric Power Windows and Doors + Central Lock		●	●	●	●
	Receiver		●	●	●	●
	Multimedia		○	○	○	○
	ABS		○	○	○	○
	●Standard Configuration○Optional/No such Configuratio

Customized services

To thank your support for SAG Commercial Vehicle Company, we provide you with an overseas comprehensive warranty policy. Extra long warranty period with unlimited mileage: 24 months for tractor, 18 months for cargo truck, 12 months for dump truck, 18 months for special vehicles. Fast and flexible after-sales appointments, 24-hour standby. If your vehicle experiences an irreparable breakdown during operation, do not hesitate, dial our local service hotline immediately, and we will promptly arrive on-site to assist you with the repairs.

We engage in close collaboration with overseas partners, utilizing a unique support model that combines overseas channel reserves with precision components pre-preparing. This effectively enhances the availability of after-services. Furthermore, based on your vehicle holdings, we can formulate personalized components assurance plans, ensuring you can get maintenance resources more quickly and conveniently.

24 Months

24 months Tractor

18 Months

18 months Cargo Truck

12 Months

12 months Dump Truck

18 Months

18 months Special Vehicles
