Off-road Dump Truck

Greater carrying capacity · Higher attendance

Off-road mining dump truck is custom-built for roadless/off-road/mining conditions, with strong carrying capacity, high reliability, low failure rate, and flexible and convenient matching.

The new offset cab has been upgraded

The new offset cab has been upgraded, with increased internal space and upgraded exterior and interior design, resulting in improved driving comfort.

Product Advantages

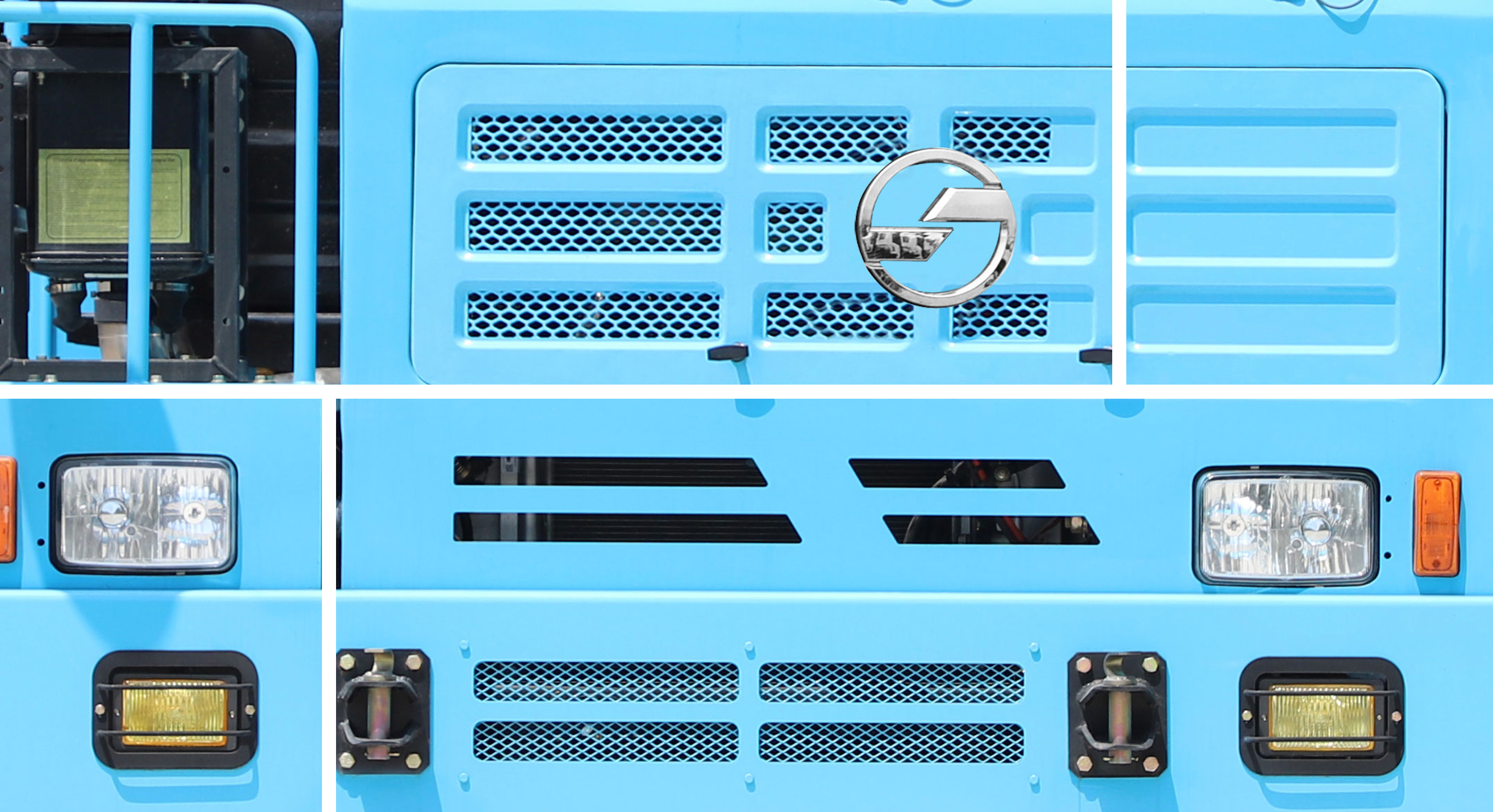

Metal bumper is convenient to repair

Reinforced taillight protection grill with good wrapping performance, avoiding the taillight being damaged by falling sand and stones when the cargo is lifted.

With low intake resistance, the oil-bath air filter is adapted to dusty and sandy working environment. The maintenance cost is also low.

(Optional) Reinforced oil sump protection grille, 6mm thick and 755mm wide, protects the water tank and oil sump. Better able to cope with poor road conditions.

850 wide structure: stable performance, good formation and assmebly processability, adaptable to harsh road conditions.

Triple beam construction: outer beams run from the front suspension to the rear of the frame.

Adjustable exhaust tailpipes can avoid the downward exhaust blowing up dust and affecting the view of the vehicle behind.

Tyre bolt strength grade 12.9, sufficient preload to cope with off-road conditions

Vehicle model parameter table

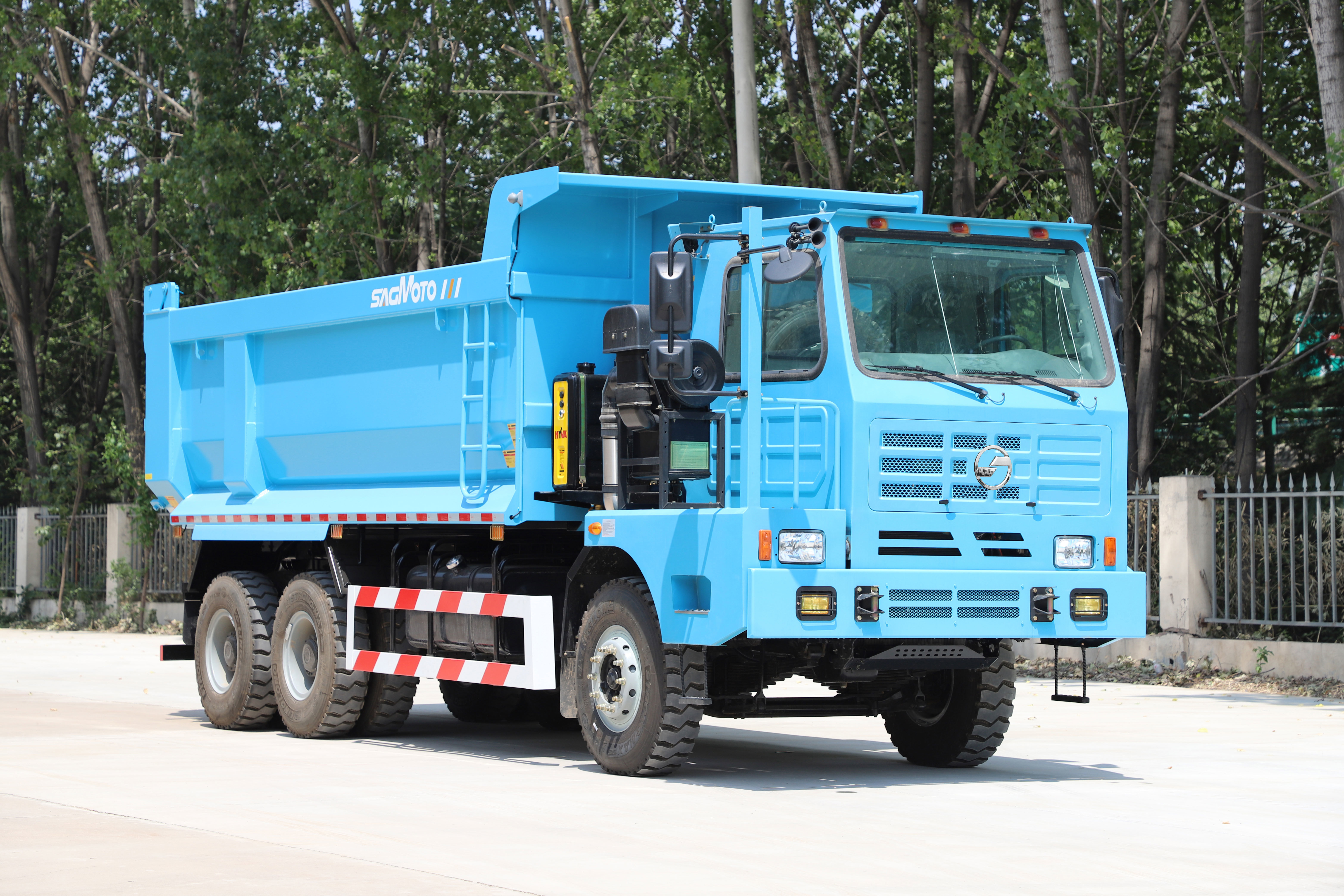

Offset Dump Truck

Vehicle model

SX3255PT404

Drive

6×4

GVW（kg）

70000

Dimensions（mm）

8760×3255×3950

Max speed（km/h）

Min. clearance of chassis（mm）

314

Min. turning radius（m）

≤9

Max.gradeability（%）

Wheelbase （mm）

3975+1400

Cabin

Offset cab, Mechanical-Hydraulic, A/C, Sliding window

Engine

YUCHAI YC6K400-33

Transmission

FAST 10JSD180-QH50

Front axle

MAN 9.5 T

Rear axle

16T double reduction rear casting axle, ratio :6.733

Frame

850×320（8+7+8）

Suspension

Front and rear multi leaf spring set up, mining rear suspension, four main spring pieces + four riding bolts（front axle rear axle stabilizer bar)

Oil tank

400L Iron

Tire

12.00R20

Cargo（mm）

5800×2300×1600

Container plate and thickness

Bottom 14 Sides 10，

Lifting form

FRONT-END CYLINDERS Multistage front lifting hydraulic system

Other

Metal bumper, flexible shaft gearbox operation, desert air filter, water box protector, steel air tank, 165Ah battery

Customized services

To thank your support for SAG Commercial Vehicle Company, we provide you with an overseas comprehensive warranty policy. Extra long warranty period with unlimited mileage: 24 months for tractor, 18 months for cargo truck, 12 months for dump truck, 18 months for special vehicles. Fast and flexible after-sales appointments, 24-hour standby. If your vehicle experiences an irreparable breakdown during operation, do not hesitate, dial our local service hotline immediately, and we will promptly arrive on-site to assist you with the repairs.

We engage in close collaboration with overseas partners, utilizing a unique support model that combines overseas channel reserves with precision components pre-preparing. This effectively enhances the availability of after-services. Furthermore, based on your vehicle holdings, we can formulate personalized components assurance plans, ensuring you can get maintenance resources more quickly and conveniently.

24 Months

24 months Tractor

18 Months

18 months Cargo Truck

12 Months

12 months Dump Truck

18 Months

18 months Special Vehicles
